Maintenance of multi-specification deep hole drill bits is cumbersome. How can integrated grinding equipment simplify the operation and maintenance process?
In precision machining, mold manufacturing, and deep hole machining industries, deep hole drills are core general-purpose cutting tools that directly determine drilling accuracy, workpiece pass rate, and production efficiency. With the upgrading of manufacturing towards refined, standardized, and lean production, enterprises are continuously increasing the types of products they process, and workshops are generally equipped with multiple specifications and types of deep hole drills, parabolic drills, and centering drills.
However, traditional manual grinding and grinding with outdated equipment are inefficient, cumbersome, and have unstable accuracy. The tool maintenance process is complex, and the scrap rate is high, becoming a key pain point restricting efficient production and increasing production costs. Against this backdrop, the widespread adoption of integrated high-precision Deep Hole Drill Bit Sharpeners provides a new solution for simplifying tool maintenance and enabling tool regeneration and reuse in the industry.
I. Industry Pain Points: The Challenges of Maintaining Multi-Specification Deep Hole Drill Bits
Currently, most machining enterprises employ traditional tool maintenance methods. Facing the daily maintenance of multiple types and specifications of deep hole drill bits, numerous drawbacks exist, severely impacting workshop production rhythm:
- Poor regrinding adaptability and low equipment versatility: Traditional simple regrinding equipment has a single specification and cannot adapt to all specifications of deep hole drill bits from Φ3 to Φ13. For drill bits with different diameters and angles, multiple machines need to be changed for regrinding, resulting in cumbersome maintenance processes and high equipment investment costs.
- Uncontrolled precision and low yield rate in manual regrinding: Manual grinding relies entirely on the operator's experience. It is difficult to unify the grinding angles of the drill bit tip angle, front cutting edge, and chip flutes, easily leading to angle deviations and uneven force, resulting in drilling vibration, hole diameter deviations, poor processing stability, and significantly increasing the risk of workpiece scrap.
- Severe tool wear and escalating production costs: Improper regrinding accelerates drill bit wear. Many slightly worn deep-hole drill bits cannot be reused and must be scrapped. This significantly increases the frequency of tool procurement, resulting in serious cost waste over time, which contradicts the lean production philosophy of cost reduction.
- Time-consuming and labor-intensive maintenance, impacting production capacity: Regrinding multiple drill bits in batches and on different equipment is a cumbersome and time-consuming process. It not only consumes a significant amount of manual labor but also leads to untimely tool replenishment, indirectly delaying the normal processing progress of the production line.
II. Industry Upgrade Trends: Integrated Universal Sharpening Becomes a Maintenance Necessity
To address the industry challenges of cumbersome, inaccurate, and high-wear maintenance of multi-specification deep hole drill bits, the tool maintenance industry is gradually moving away from the outdated, decentralized, manual, and multi-equipment-based model. Integrated, high-precision, fully compatible, and user-friendly dedicated shaving equipment is becoming standard equipment in workshops. By adapting to all types of deep hole drill bits with a single machine, standardizing shaving processes, and simplifying maintenance procedures, it enables rapid tool repair and reuse, helping processing companies reduce costs and improve efficiency.

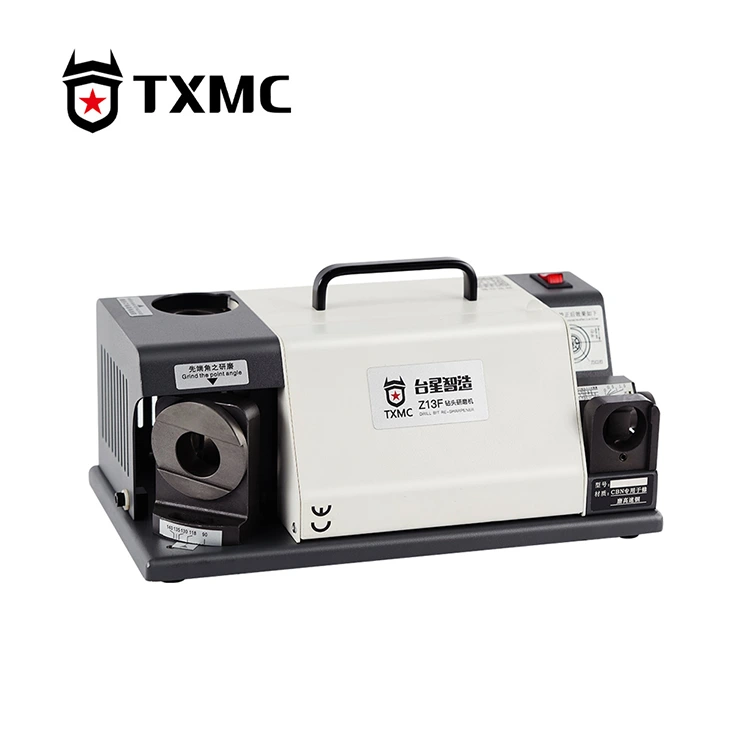

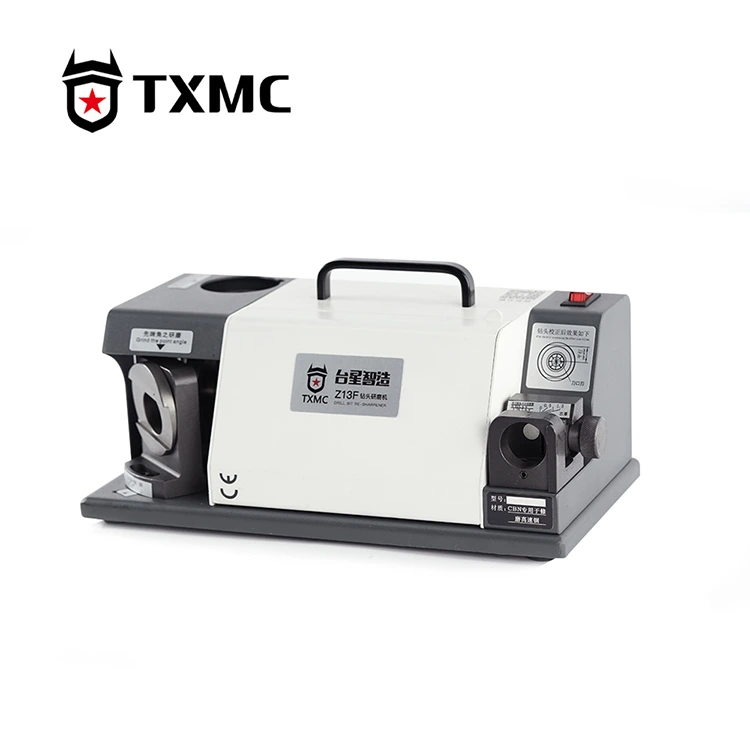

TXMC, with over 20 years of experience in the tool sharpening equipment field, has launched the TX-Z13F Deep Hole Drill Bit Sharpener, addressing industry pain points. Based on the initial Z13 model, it optimizes the structure and functions, precisely solving the problems of cumbersome maintenance and insufficient sharpening accuracy for multi-specification drill bits, creating a standardized, lightweight, and integrated tool maintenance solution.
III. TX-Z13F Integrated Drill Bit Sharpening Machine: Simplifying Tool Maintenance Processes in All Aspects
This upgraded deep hole drill bit sharpening machine is specifically optimized to address the challenges of maintaining multiple drill bit sizes. It integrates advantages such as full-size compatibility, precise sharpening, simple operation, and high stability, fundamentally simplifying the workshop tool maintenance system.
1. One Machine, Full Coverage: Eliminate the Need for Multiple Equipment Switching
The machine supports sharpening of all drill bit sizes from Φ3 to Φ13mm and comes standard with 11 sets of standard chucks, perfectly covering commonly used deep hole drill bits, parabolic drill bits, and centering drill bits. Enterprises no longer need to purchase multiple sharpening machines of different models, nor the cumbersome process of changing equipment and adjusting parameters. One machine can complete all routine drill bit sharpening operations, greatly simplifying the maintenance equipment system and reducing equipment investment costs.
2. Full-Range Angle Adjustment, Standardized and Precise Sharpening
The Deep Hole Drill Bit Sharpener allows for precise adjustment of the drill bit tip angle from 90° to 140°, enabling targeted sharpening of the drill bit tip, front cutting edge, and chip flute structure. This optimizes drill bit geometry and completely eliminates the problems of angle deviation and uneven force distribution associated with manual sharpening. Utilizing a stable 4400 RPM speed, it achieves high uniformity and consistency in sharpening, effectively improving the stability of deep hole machining. Repaired drill bits can achieve the same machining effect as brand-new tools, enabling tool regeneration and reuse.
3. Lightweight and Easy to Operate, Significantly Saving Maintenance Manpower
The machine has a compact structure, measuring only 36×21×19cm and weighing 9KGS, saving workshop space and allowing for flexible placement. The equipment eliminates complex operating procedures, requiring no experienced technicians; ordinary employees can quickly learn to use it. Standardized one-button sharpening replaces traditional tedious manual sharpening, significantly reducing the sharpening time for a single drill bit and freeing up manpower.
4. Dual Grinding Wheel Compatibility, Adaptable to All Material Tool Maintenance
The equipment comes standard with a CBN grinding wheel for high-speed steel drill bits, and an optional SDC grinding wheel for carbide drill bits, accommodating the regrinding needs of drill bits of different materials. No equipment replacement or additional modifications are required, providing a one-stop solution for deep hole drill bit repair of all materials, adapting to diverse workshop production conditions.
IV. Core Application Value, Empowering Lean Manufacturing
Compared to traditional maintenance models, the TX-Z13F Deep Hole Drill Bit Sharpener restructures the workshop tool maintenance system, bringing multiple core values to enterprises: simplified maintenance processes for various drill bit specifications, reduced equipment investment, lower labor costs, standardized regrinding accuracy, extended tool life, and reduced tool scrap and wear, comprehensively helping enterprises achieve lean cost reduction, quality improvement, and efficiency enhancement. The equipment also supports single-piece procurement and customized body color, with 5-10 day fast delivery for in-stock items, providing flexible and efficient tool maintenance solutions for small and medium-sized processing enterprises and large factories.
V. Industry Summary
Under the major trend of lean manufacturing upgrades, cumbersome and inefficient manual, decentralized tool maintenance models have been gradually phased out by the market. Integrated, standardized, and high-precision specialized drill bit regrinding equipment is the core solution to the maintenance challenges of multi-specification deep hole drill bits. In the future, as the precision machining industry continues to demand higher tool accuracy, maintenance efficiency, and lower production costs, general-purpose deep hole drill bit regrinding machines will become standard equipment in various machining workshops, continuously helping the manufacturing industry optimize production processes and achieve cost reduction and efficiency improvement. Welcome to contact us for our quality Deep Hole Drill Bit Sharpener!
