Alloy Saw Blade Sharpener

TXMC's Alloy Saw Blade Sharpeners, manufactured in China, integrate internationally advanced production management models and adhere to a manufacturing philosophy of continuous improvement in quality. Our product line now encompasses over 60 types of core equipment, forming a comprehensive range covering saw blade sharpeners, grinding machines, and automatic cutter sharpeners.
Model: TX-Q12

Send Inquiry

Product Description

The Q12 Alloy Saw Blade Sharpener is a latest selling model. While retaining all the functions of the TX-Q5, it further expands its application range. This model comes standard with support for grinding saw blades ranging from 60-270mm, and is particularly adept at handling dense-tooth, thin saw blades. It can be widely used for the reprocessing of carbide and high-speed stainless steel saw blades.

The machine's primary benefits are its high-speed composite grinding capabilities and precision positioning, which allow for accurate and efficient grinding of both carbide and high-speed steel saw blades. It offers automated tooth shifting and stepless speed regulation, making it easy to operate and offering consistent grinding results, allowing users accomplish high-quality, high-efficiency saw blade maintenance.

Alloy Saw Blade Sharpener

Products Parameter

Model	TX-Q12
Saw blade dia.	Φ60-Φ320
Feed speed	45 teeth/min
Voltage	220V/380V
Power	250W/60W(T)
Dimension	60×52×64cm
Weight	70KGS

Learn more

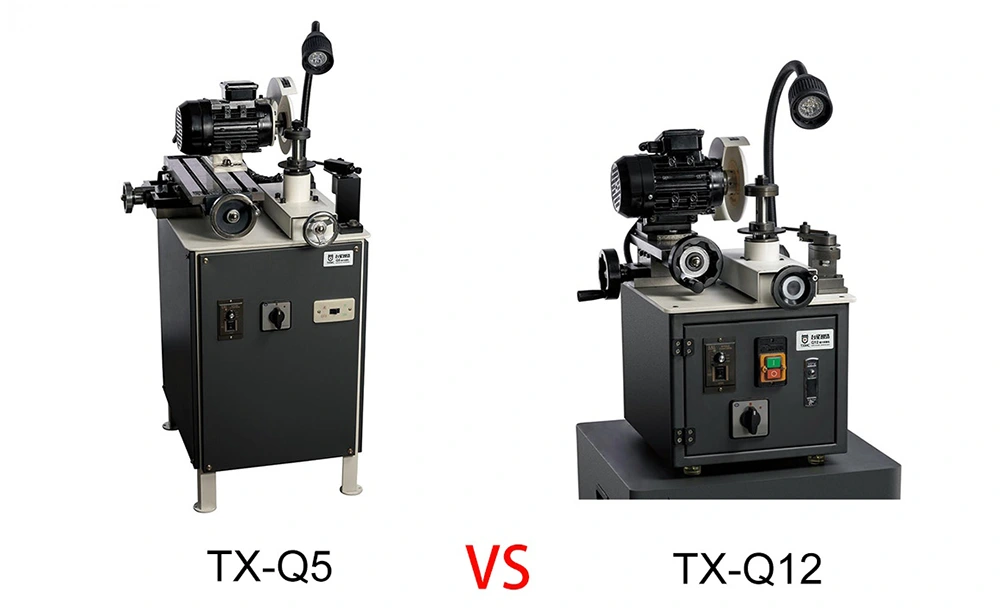

Both the TX-Q5 and TX-Q12 saw blade sharpeners utilize template drive technology for precise sharpening.Their key difference lies in grinding range and versatility:

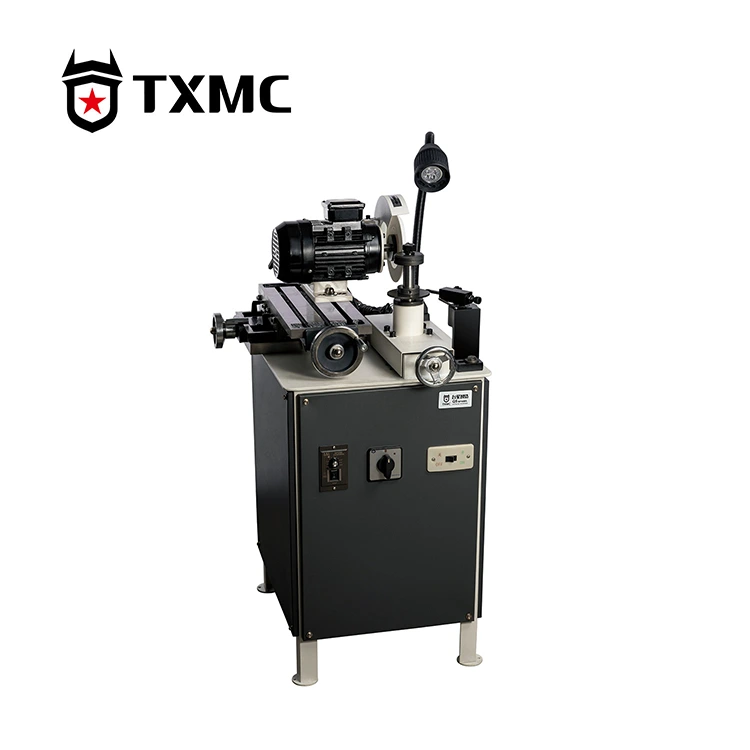

The TX-Q5 White Steel Saw Blade Grinding Machine is a specialized model for sharpening HSS (white steel) blades within a 60-160mm diameter range.

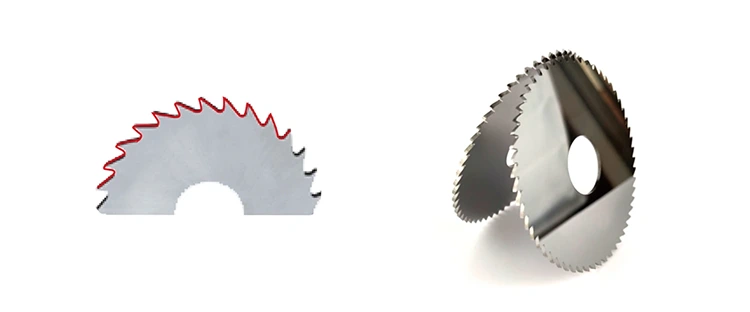

The TX-Q12 Alloy Saw Blade Sharpener is a full-function, professional-grade machine. It not only covers all the capabilities of the Q5 but significantly expands them, handling a wider diameter range of 60-320mm (with custom options below 60mm) and expertly sharpening a variety of blades including fine-tooth thin blades, carbide, tungsten steel, as well as HSS blades.

Alloy Saw Blade Sharpener
