Function Complex Sharpener
TXMC, a manufacturer of Function Complex Sharpeners, is an innovative enterprise dedicated to the R&D, production, and global sales of industrial and intelligent grinding equipment. Guided by "Innovative Technology, Customer Service," we provide a full line of tool grinding systems and automated solutions, along with integrated services from fabrication to process optimization.
Model: TX-F4/F6
Send Inquiry
Product Description
The TXMC Function Complex Sharpener is a durable machine, meticulously designed for the needs of small and medium-sized machining workshops and tool shops. It perfectly solves the pain point of inconvenient regrinding of end mills and drill bits in multi-variety, small-batch production.
Main Applications

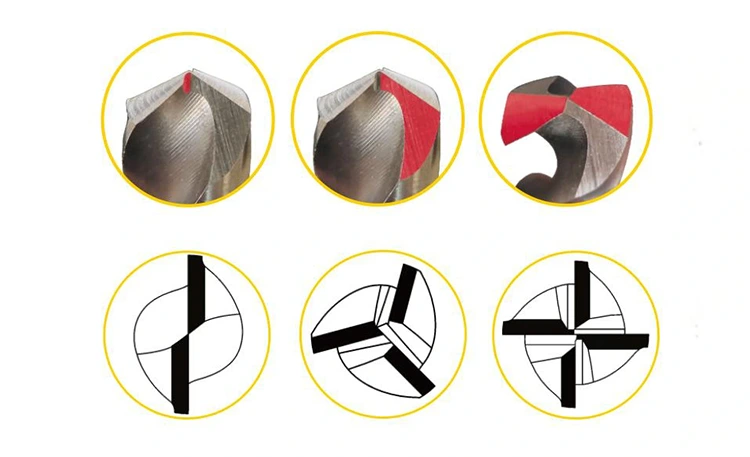

Precision Regrinding of End Mills: Capable of precisely regrinding the end faces of 2-flute, 3-flute, and 4-flute end mills, restoring their cutting function.
Precision Regrinding of Drill Bits: Easily regrinds the point angle, positive rake angle, and clearance angle of standard drill bits, restoring their drilling function.
Products Parameter
|
Model |
TX-F4 |
TX-F6 |
|
Drill bit grinding range |
Φ3-Φ13 |
Φ13-Φ30（Φ32） |
|
Milling cutter grinding range |
Φ4-Φ14 |
Φ12-Φ30 |
|
Drill bit point angle |
100°-135° |
95°-135° |
|
Milling cutter point angle |
0°-3° |
|
|
Power |
220V |
220V |
|
Motor |
160W |
250W |
|
Speed |
4400RPM |
4400RPM |
|
Dimension |
36×24×31cm |
45×34×38cm |
|
Weight |
21KGS |
47KGS |
Standard Accessories
|
Model |
TX-F4 |
TX-F6 |
|
Grinding Wheel |
SDC (for Carbide)×1， CBN (for HSS)×1 |
SDC (for Carbide)×1， CBN (for HSS)×1 |
|
Standard Collet |
12 pcs(Ф3；Ф4；Ф5；Ф6；Ф7；Ф8；Ф9；Ф10；Ф11；Ф12；Ф13；Ф14) |
19 pcs(Ф12；Ф13；Ф14；Ф15；Ф16；Ф17；Ф18；Ф19；Ф20；Ф21；Ф22；Ф23；Ф24；Ф25；Ф26；Ф27；Ф28；Ф29；Ф30) |
|
Chuck Set |
3 sets |
3 sets |
Note: Standard accessories includes CBN grinding wheel drill bits and SDC grinding wheel milling cutters.
Learn more
The specific configuration of the TX-F4/F6 series Function Complex Sharpener is as follows:
TX-F4: X3 end mill sharpener machine and Z13D drill bit sharpener machine
TX-F6: X5 end mill sharpener machine and Z26 drill bit sharpener machine
