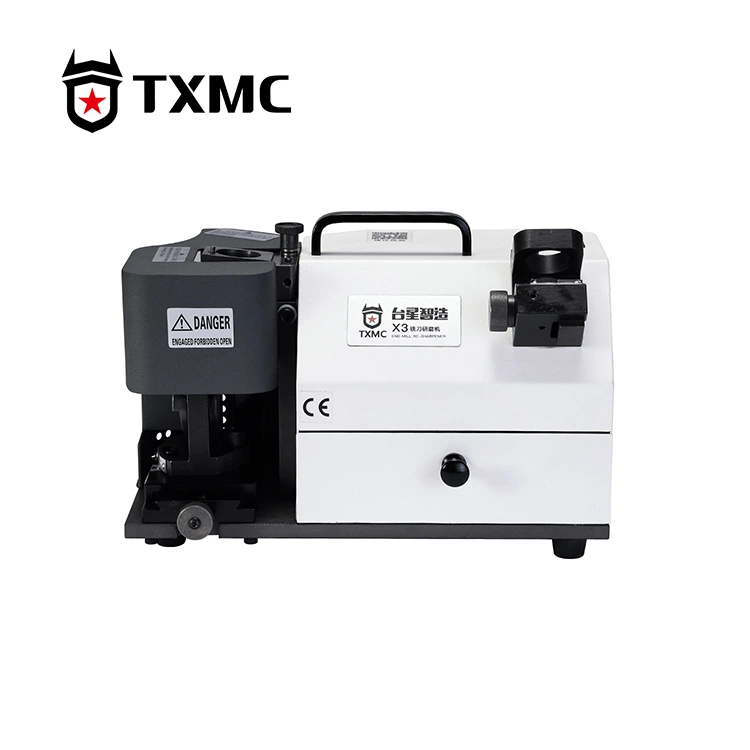

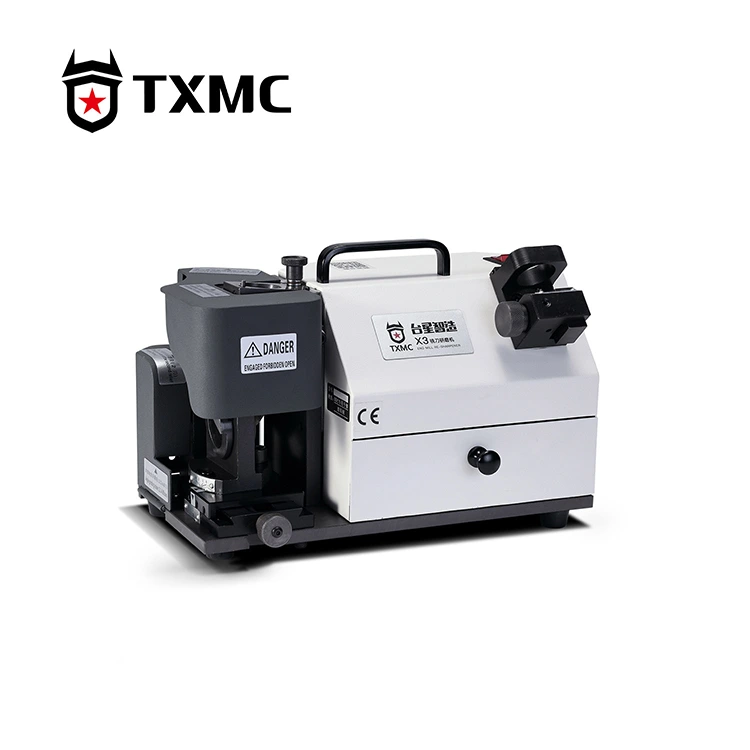

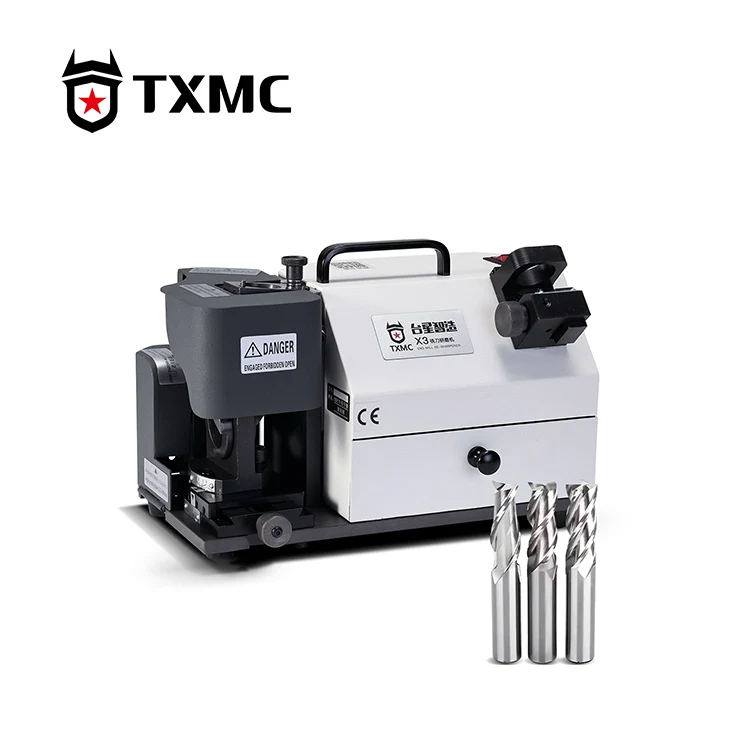

Carbide End Mill Sharpener

TXMC is a manufacturer specializing in the research and production of Carbide End Mill Sharpeners. For many years, the company has adhered to innovation in tapping machines and independently developed and produced more than 60 kinds of tool regrinding equipment, covering grinding machines, tool grinders and automatic grinding machines.
Model: TX-X3/X3A/X5

Send Inquiry

Product Description

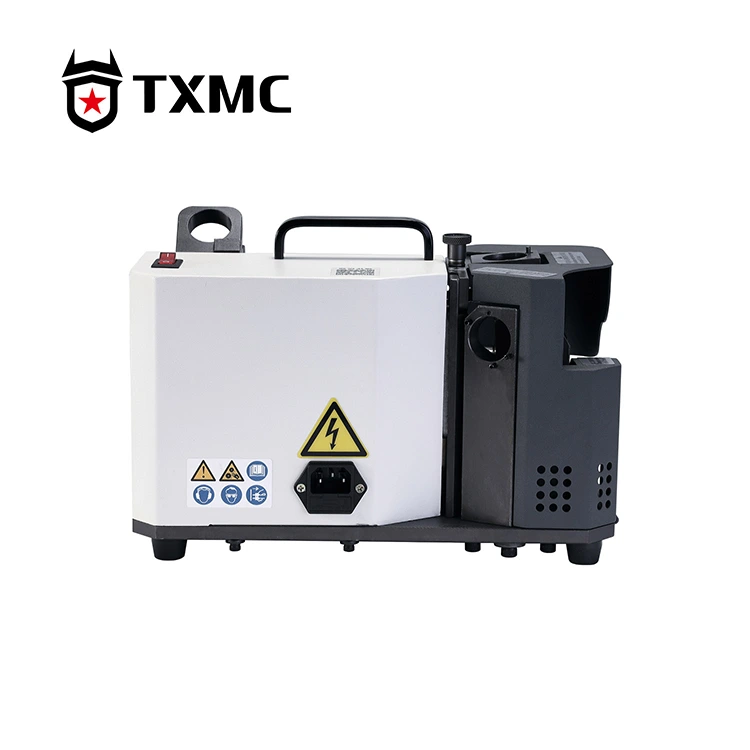

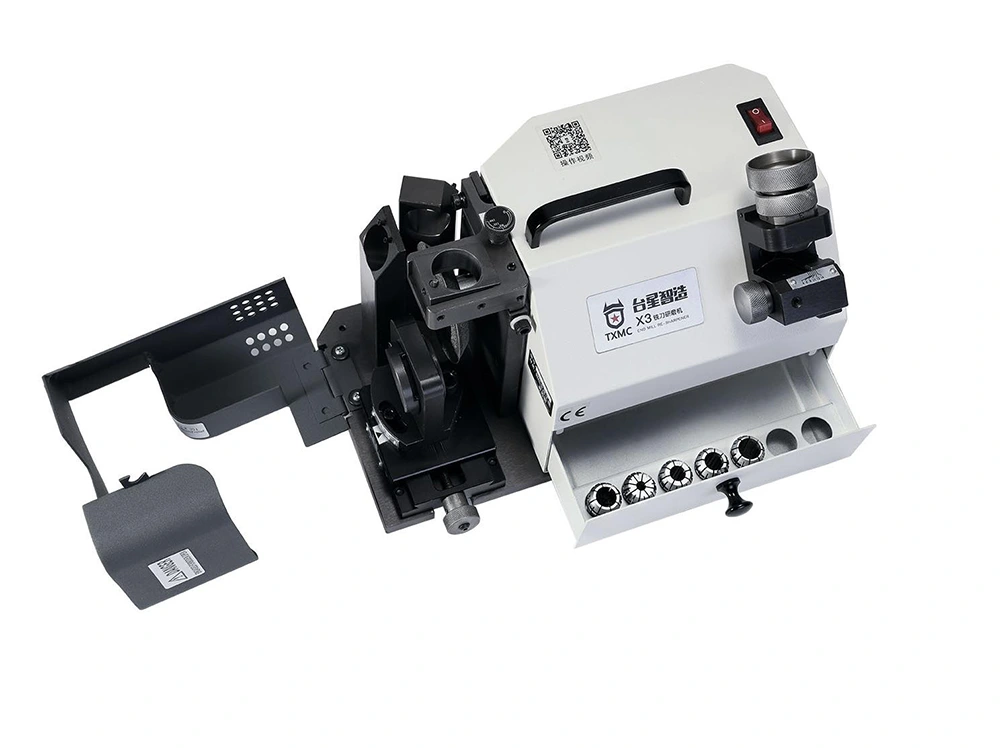

TXMC brand X3/X3A/X5 series Carbide End Mill Sharpeners are portable machines that require no operating skills and can directly grind the end face cutting edge using a tungsten rod.

Designed specifically for end mills:

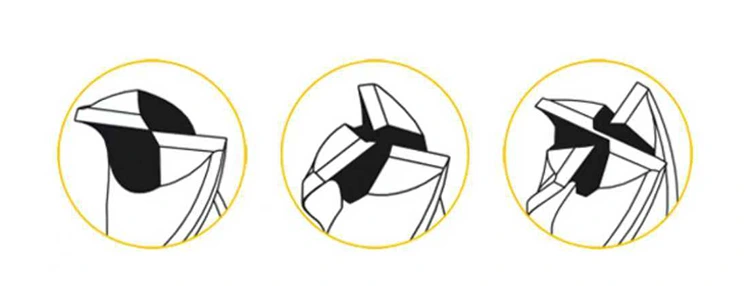

The machine is designed for regrinding 2-flute, 3-flute and 4-flute end mills.Custom models can also regrind 5-flute and 6-flute end mills, making it an ideal device for tool maintenance and regrinding.

Carbide End Mill Sharpener

Comprehensive Precision Regrinding:

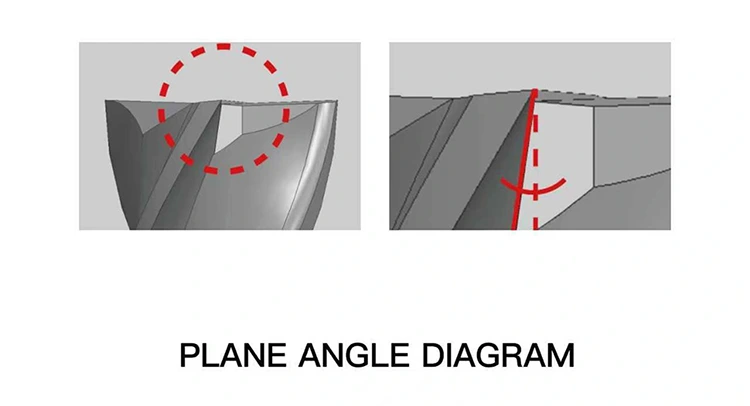

Capable of precisely regrinding the end face, chip flutes, and clearance angle of end mills. Comprehensive functions, providing a one-stop solution for restoring tool performance.

Carbide End Mill Sharpener

Flexible and Controllable Regrinding Technology:

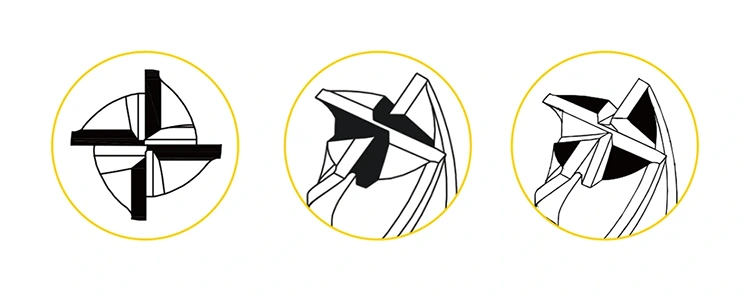

The width and depth of the chip flutes can be precisely controlled by adjusting the lifting button wheel, better meeting the machining needs of different materials.

Carbide End Mill Sharpener

Products Parameter

Model	TX-X3	TX-X3A	TX-X5
Grinding range	Φ4-Φ14	Φ4-Φ20	Φ12-Φ30
Voltage	220V	220V	220V
Power	160W	200W	250W
Speed	4400RPM	4400RPM	4400RPM
Dimension	35×23×24cm	40×24×26cm	40×31×32cm
Weight	15KGS	16KGS	28KGS

Standard Accessories

Model	TX-X3	TX-X3A	TX-X5
Grinding Wheel	SDC (for Carbide)×1	SDC (for Carbide)×2	SDC (for Carbide)×1
Standard Collet	6 pcs(Ф4；Ф6；Ф8；Ф10；Ф12；Ф14)	9 pcs(Ф4；Ф6；Ф8；Ф10；Ф12；Ф14；Ф16；Ф18；Ф20)	10 pcs(Ф12；Ф14；Ф16；Ф18；Ф20；Ф22；Ф24；Ф26；Ф28；Ф30)
Chuck Set	2 sets	4 sets	2 sets
Option Accessories	Grinding wheel :CBN (for HSS)

Learn more

The TX-X3/X3A/X5 Carbide End Mill Sharpener each have their own strengths in power configuration and sharpening range to meet the maintenance needs of end mills in different scenarios:

The TX-X3 focuses on the efficient sharpening of small-diameter end mills, with a sharpening range of 4–14mm, suitable for everyday precision machining.

The TX-X3A expands upon the X3's capabilities, increasing the sharpening range to 4–20mm, accommodating small to medium-diameter end mills and offering wider applicability.

The TX-X5 is designed specifically for large-diameter end mills, with higher power, and can reliably handle sharpening tasks for end mills ranging from 12–20mm.
