Straight Groove Screw Tap Sharpener
TXMC, a Chinese manufacturer of Straight Groove Screw Tap Sharpeners, focuses on the research and development of sharpener machines, universal tool grinders, and automatic cutter grinding machines. With a 7,000㎡ factory, over 50 patents, and intelligent mass-production capabilities, our professional R&D team continuously advances grinding technology toward greater precision, efficiency, and intelligence.
Model: TX-Y3C/Y5C
Model:TX-Y3C/Y5C
Send Inquiry
Product Description

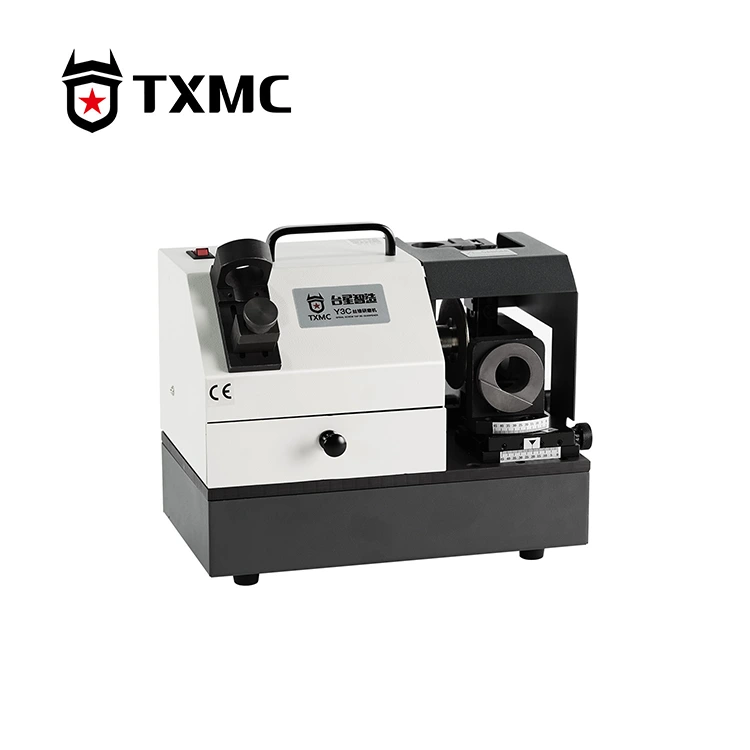

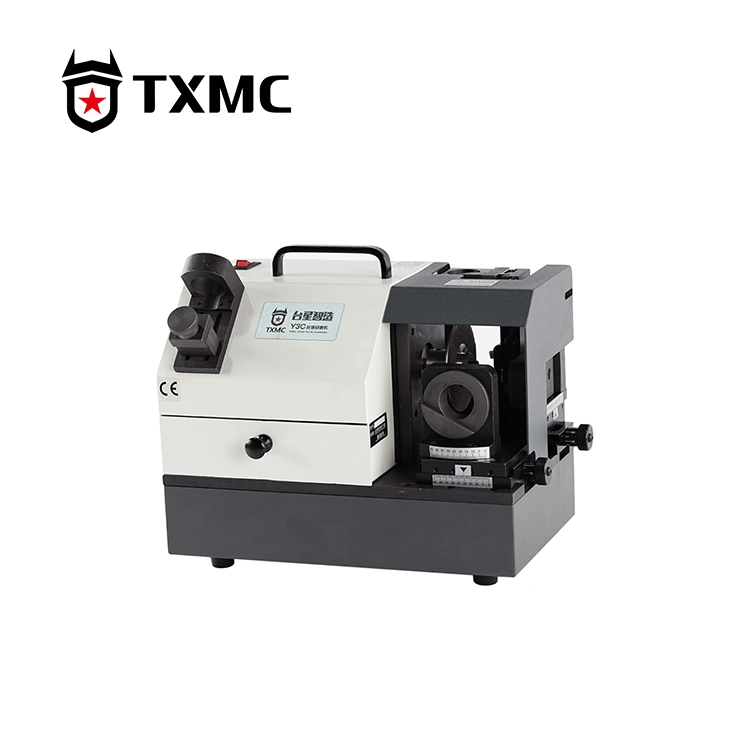

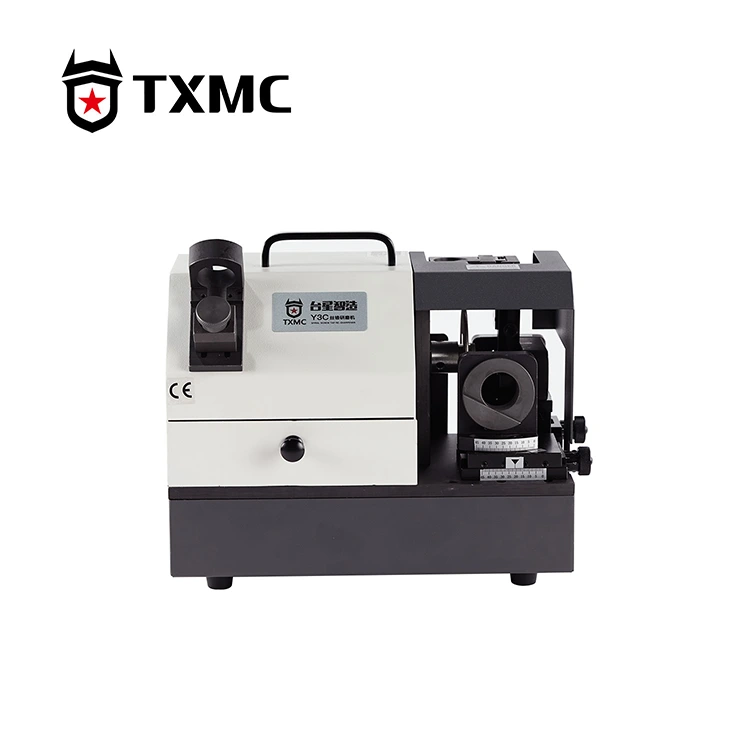

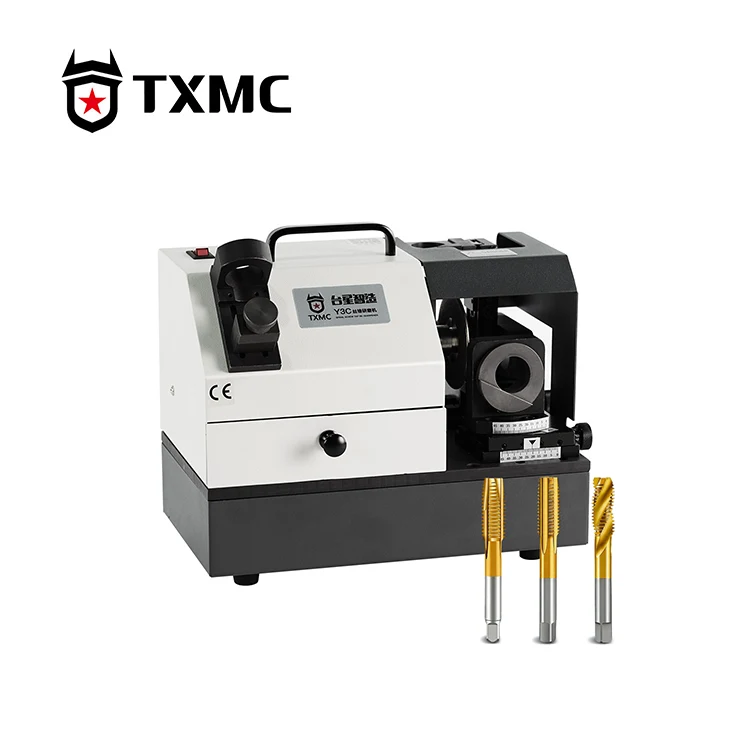

TXMC Durable Straight Groove Screw Tap Sharpener is a high-quality, portable device engineered for precise tap re-grinding. It offers precise re-sharpening capabilities and can readily accommodate three-flute and four-flute taps, while five-flute tap re-grinding is achievable with optional components.

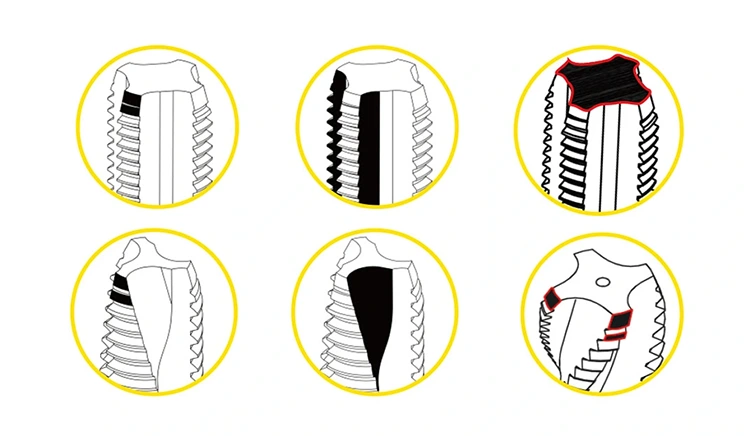

Its Y3C/Y5C versions allow for precise re-grinding of flute taps, which covers the whole front cutting face and edge in one operation. This successfully recovers the tap's sharpness and machining capability, significantly increasing tool service life.
Products Parameter
|
Model |
TX-Y3C |
TX-Y5C |
|
Grinding range |
M5-M20 |
M16-M42 |
|
Point angle |
5°-30° |
5°-30° |
|
Voltage |
220V |
220V |
|
Power |
160W |
250W |
|
Speed |
4400RPM |
4400RPM |
|
Dimension |
36×21×30.5cm |
40×30×31cm |
|
Weight |
11KGS |
26.5KGS |
Standard Accessories
|
Model |
TX-Y3C |
TX-Y5C |
|
Grinding Wheel |
CBN (for HSS)×1 |
CBN (for HSS)×1 |
|
Standard Collet |
6pcs(Ф5；Ф7；Ф8；Ф9；Ф13；Ф14) |
9pcs(Ф13；Ф14；Ф16；Ф18；Ф20；Ф23；Ф25；Ф28；Ф30) |
|
Chuck Set |
2sets |
2sets |
|
Option Equipment |
SDC (for Carbide) |
|
Learn more
Can the TX-Y3C/Y5C series Straight Groove Screw Tap Sharpeners re-grind five-flute and six-flute taps?
The TX-Y3C/Y5C series grinding machines support customized adaptation and can meet the re-grinding needs of five-flute and six-flute taps. This series of equipment has comprehensive repair capabilities, and for worn straight flute taps, it can perform all-around treatment from the front cutting face to the front cutting edge, restoring the tap to its original performance in a single re-grinding session.
