Ball End Mill Sharpener

TXMC's China manufacturing plant specializes in Ball End Mill Sharpeners and is a national high-tech enterprise integrating R&D, manufacturing, and service. For years, we have been committed to providing efficient and precise tooling solutions nationwide. Guided by the mission of "offering customers one-stop regrinding services," we continuously help improve tool utilization and reduce production costs.
Model: TX-X8

Send Inquiry

Product Description

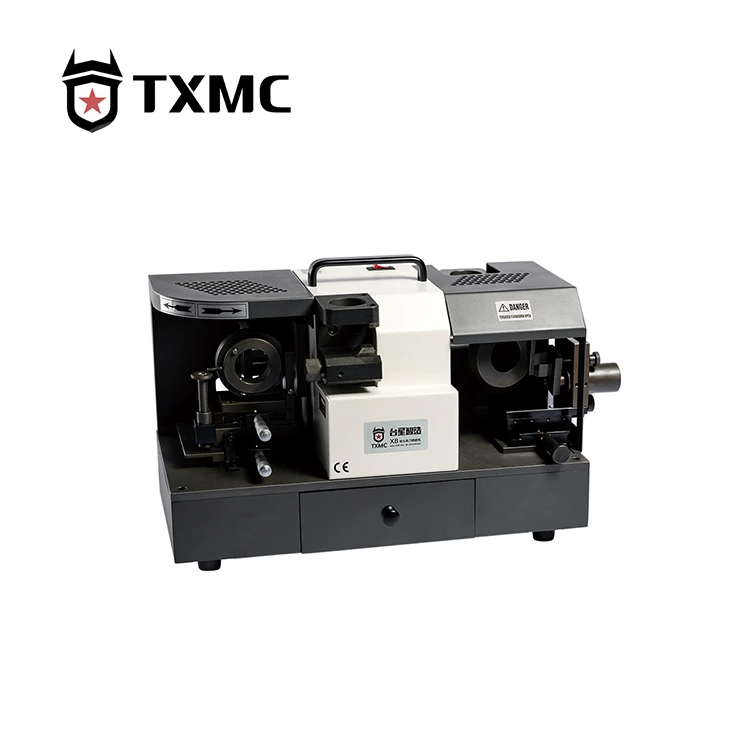

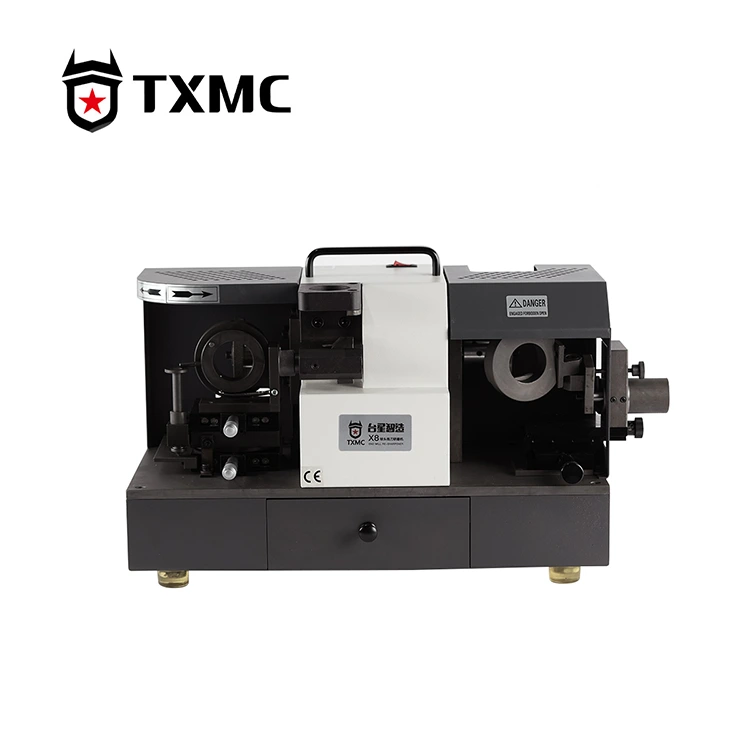

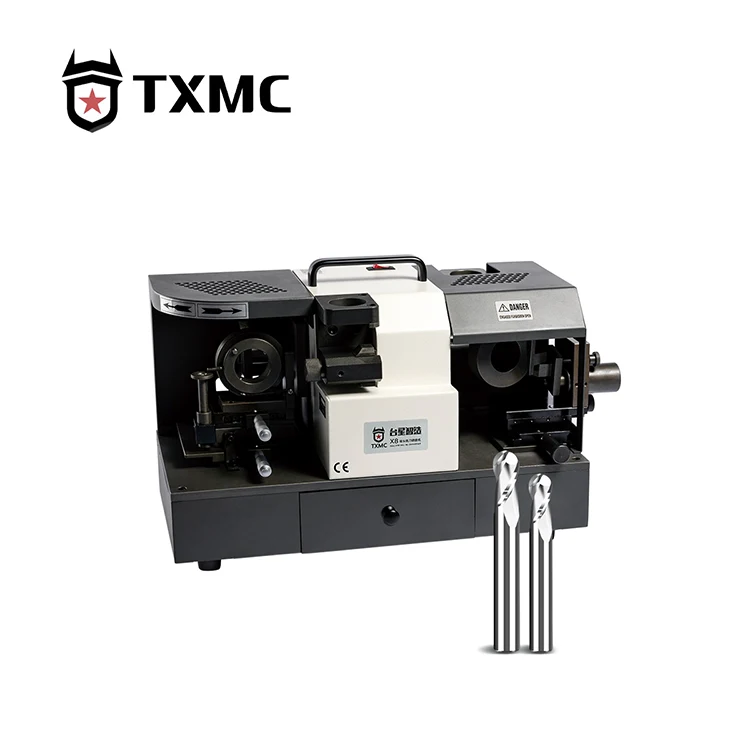

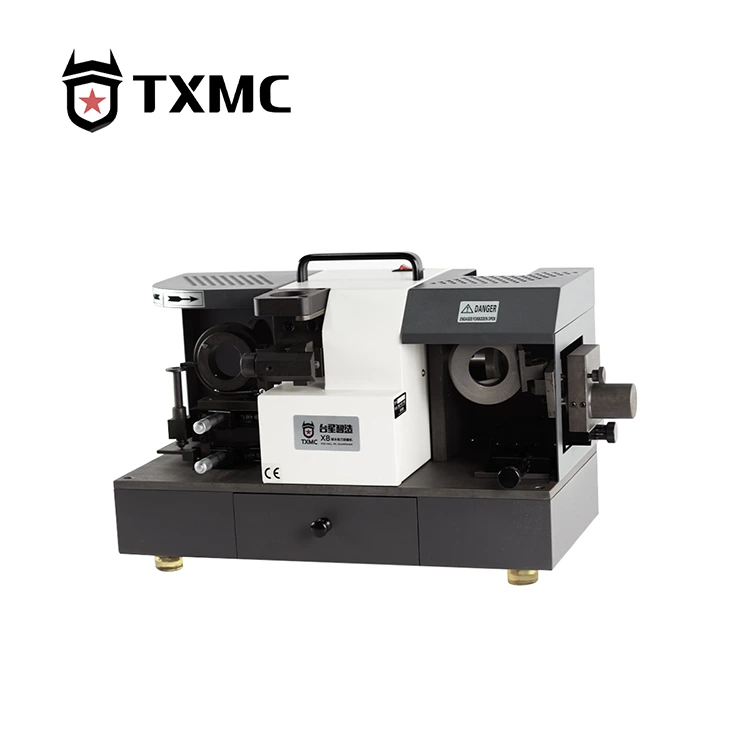

The TXMC TX-X8 durable Ball End Mill Sharpener is a customized machine designed specifically for grinding ball end mills. It can precisely and quickly grind all angles of ball end mills, offering simpler operation and requiring no complex skills to easily complete the grinding work, thus reducing reliance on operator expertise.

The core advantage of the milling cutter grinding machine lies in its excellent durability and economy. It is equipped with diamond grinding wheels from Taiwan, which are precise in angle and have a longer service life, effectively saving the cost of cutting tools.

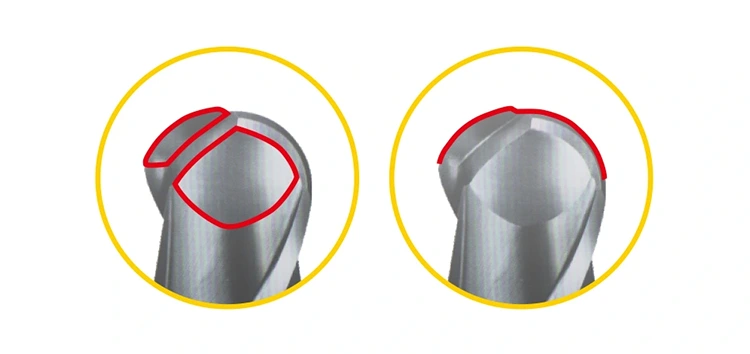

Ball End Mill Sharpener

Products Parameter

Model	TX-X8
Diameter range	Φ6-Φ20
Radius range	R3-R10
Voltage	220V
Power	250W
Speed	4400RPM
Dimension	60×29×17cm
Weight	40KGS

Learn more

1.What types of cutting tools is the TX-X8 Ball End Mill Sharpener primarily used for sharpening?

The TX-X8 is a specialized machine mainly designed for sharpening two-flute ball end mills. It can efficiently handle various angles of end mills, making it an ideal sharpening tool for precision instrument manufacturing and other related fields.

2.How to clean and maintain the machine?

After use, use a brush or air gun to remove any residual metal dust from the machine and check if the grinding wheel is intact.
