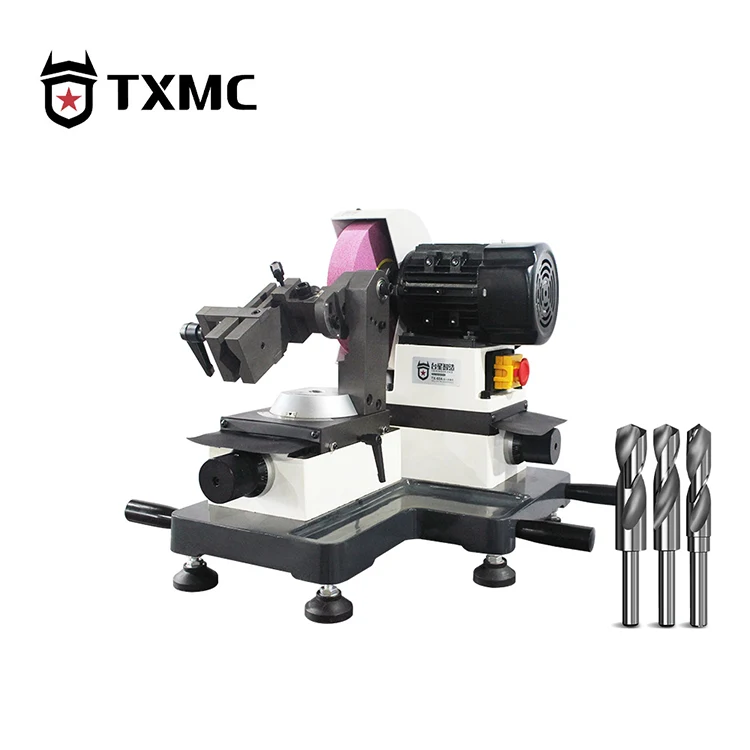

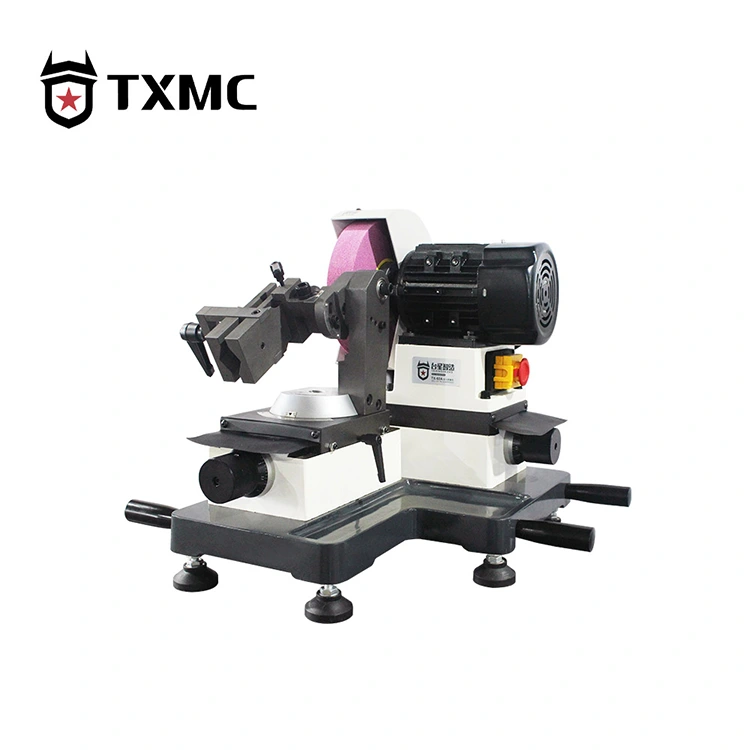

Large Drill Bit Sharpener

TXMC factory manufactures Large Drill Bit Sharpener. Since its inception, we have focused on the research and innovation of re-grinding technologies for various cutting tools, including drill bit grinding machines and automatic cutter grinding machines.We help customers grind drill bits and extend tool life by continuously improving the precision, stability, and intelligence of our grinding equipment.
Model: TX-60A/80A

Send Inquiry

Product Description

TXMC's latest selling Large Drill Bit Sharpener are designed for efficient and precise grinding of large drill bits.They offer a wide range of applications and stable processing performance, meeting the grinding needs of various industrial scenarios.

Products Parameter

Model	TX-60A	TX-80A
Grinding range	Φ3-Φ60	Φ3-Φ80
Voltage	380V	380V
Power	550W	550W
Speed	2800RPM	2800RPM
Dimension	56×46×49cm	56×46×49cm
Weight	101KGS	106KGS

Standard Accessories

Model	TX-60A	TX-80A
Grinding Wheel	Grinding wheel×1	Grinding wheel×1
Standard Collet	9 PCS(Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11)	9 PCS(Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11)

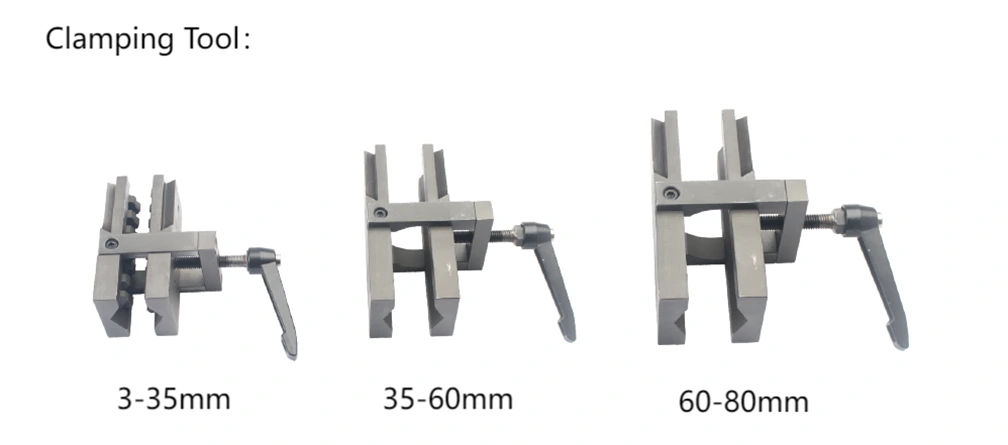

Clamping tool	2 PCS 3-35mm,35-60mm	3 PCS 3-35mm,35-60mm,60-80mm

Grinding wheel specifications:outer diameter 200mm, inner diameter 50mm, width 40mm

Why Choose Our Drill Bit Sharpener?

1.Powerful Grinding Capacity

TX-60A Model: Grinding range3-60mm.

TX-80A Model: Grinding range3-80mm.

Both Large Drill Bit Sharpeners can repairable Grind the flank, rake face,chisel edge, chamfer of various large drill bits,ensuring the drill bit returns to its standard geometry.

2.Wide Drill Bit Compatibility

This series of machines is suitable for various drill bit types, including:standard twist drills, flat bottom drills, center positioning drills, step drills, four-sided drils, cemented carbide drils, wood drill bits, end mills, counter-hole drills, etc.

3.Efficient Grinding and Precise Clamping

Precision clamping tools control the drill bit's trajectory, ensuring accurate positioning and high stability.

4.Convenient grinding wheel dressing mechanism:

A grinding wheel dressing pen is included, which can quickly dress worn grinding wheels to ensure that the cutting edge is sharp every time they are dressed.
