Metal Universal Cutter Grinder

The TXMC TX-U2/U3/U5 Metal Universal Cutter Grinder is a durable machine, specifically designed for efficient, precise sharpening of various cutting tools. lt's suitable for multiple industries including machining woodworking, and engraving-extending tool lifespan noticeably and boosting processing efficiency dramatically.

TX-U2: Focused on sharpening single-edged engraving tools, precisely matching the sharpening needs of individual tools;

TX-U3: An upgraded version of the U2, adding the function of sharpening drill bits, turning tools, and ball end mills, making it suitable for a wider range of applications;

TX-U5: A completely new upgrade to the U3, equipped with a 5C chuck, with a maximum clamping range of up to 25mm, accommodating larger tool sizes.

Products Parameter

Standard Accessories

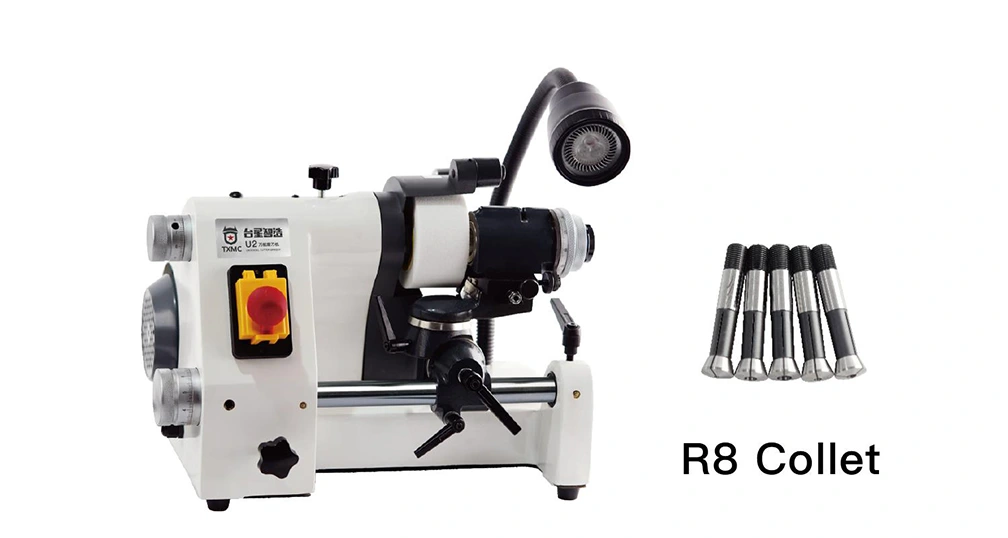

TX-U2 Standard Accessories include:

①　R8 Collets: 5pcs (Φ4; Φ6; Φ8; Φ10; Φ12)

②　Grinding Wheels:2pcs (one resin cup-shaped grinding wheel, one cup-shaped white corundum wheel)

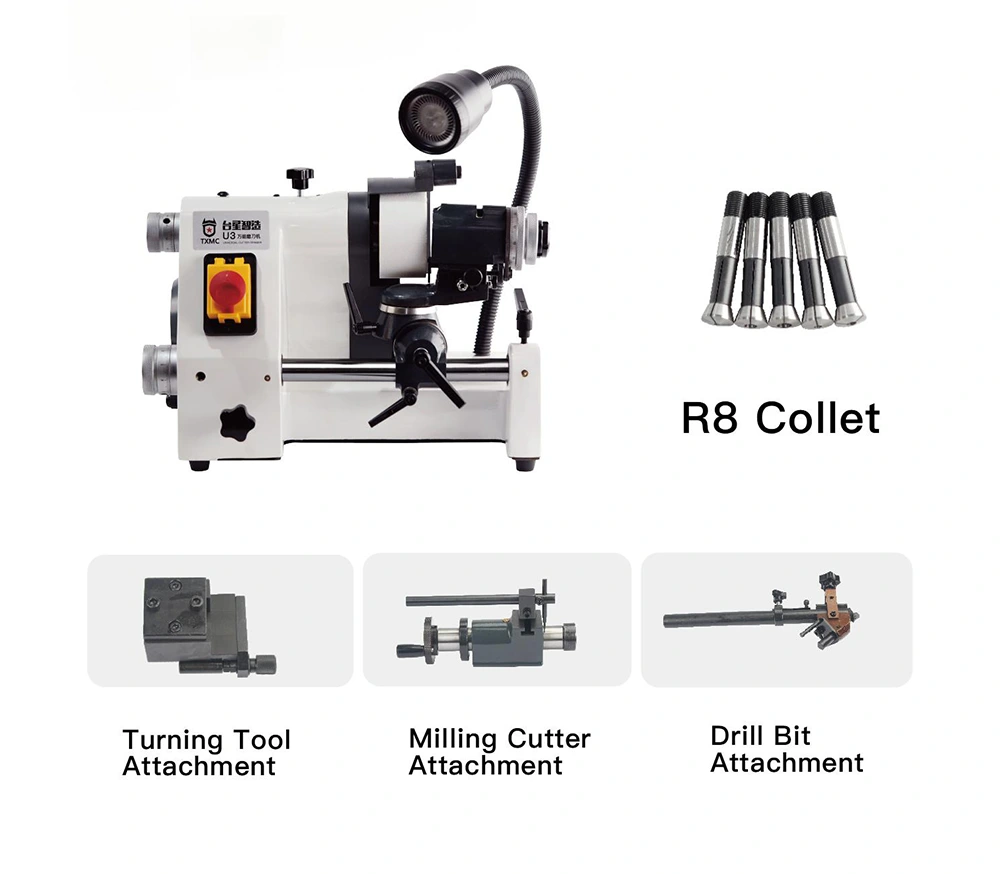

TX-U3 Standard Accessories include:

①　R8 Collets: 5pcs (Φ4; Φ6; Φ8; Φ10; Φ12)

②　Grinding Wheels: 2pcs (one resin cup-shaped grinding wheel, one cup-shaped white corundum wheel)

③　Turning Tool Attachment×1

④　Milling Cutter Attachment×1

⑤　Drill Bit Attachment×1

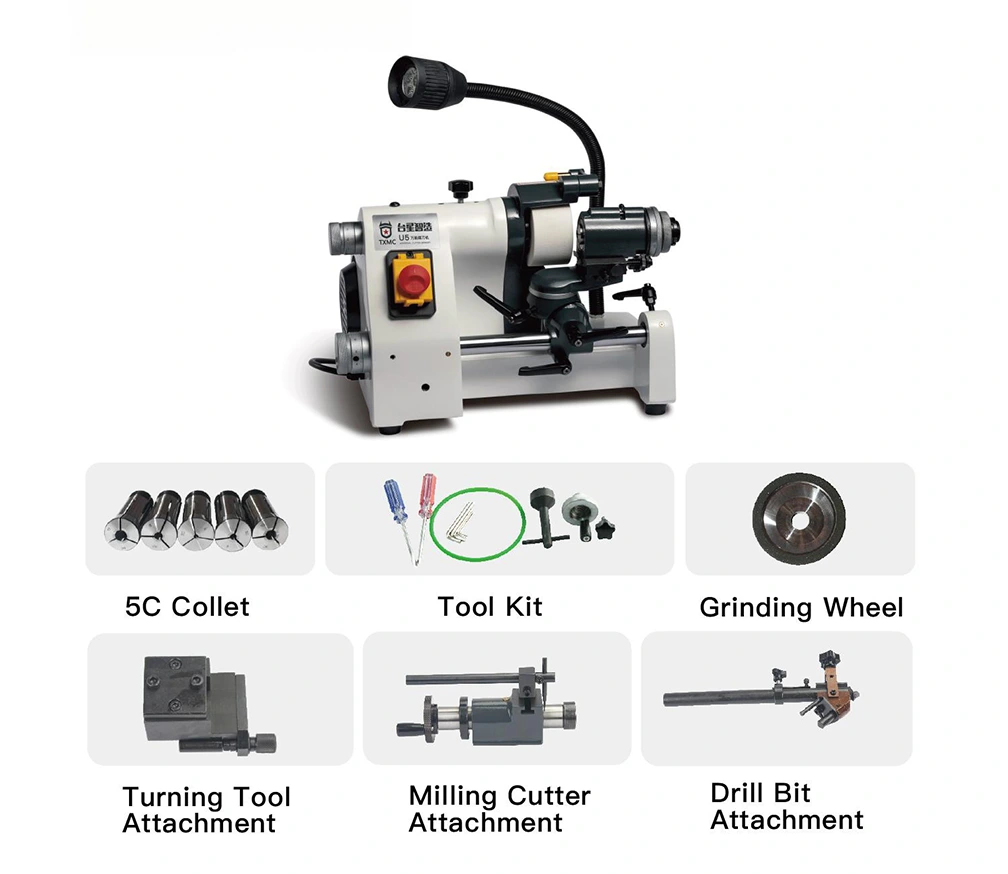

TX-U5 Standard Accessories include:

①　5C Collets: 5pcs (Φ4; Φ6; Φ8; Φ10; Φ12)

②　Grinding Wheels: 2pcs (one resin cup-shaped grinding wheel, one cup-shaped white corundum wheel)

③　Turning Tool Attachment×1

④　Milling Cutter Attachment×1

⑤　Drill Bit Attachment×1

⑥　Tool Kit×1

Depending on the material of the cutting tool, the Metal Universal Cutter Grinder can be equipped with either an electroplated grinding wheel or a cup-shaped resin grinding wheel to achieve the best grinding effect.
