Multifunctional Automatic Cutters Grinding Machine
TXMC is a manufacturer specializing in Multifunctional Automatic Cutters Grinding Machines, committed to producing tool grinders, special-purpose tool grinders, and precision machine tools. Participation in over 500 industry exhibitions has established our recognized brand and technical strength. As a leading domestic manufacturer, we remain dedicated to delivering high-precision and efficient grinding solutions.

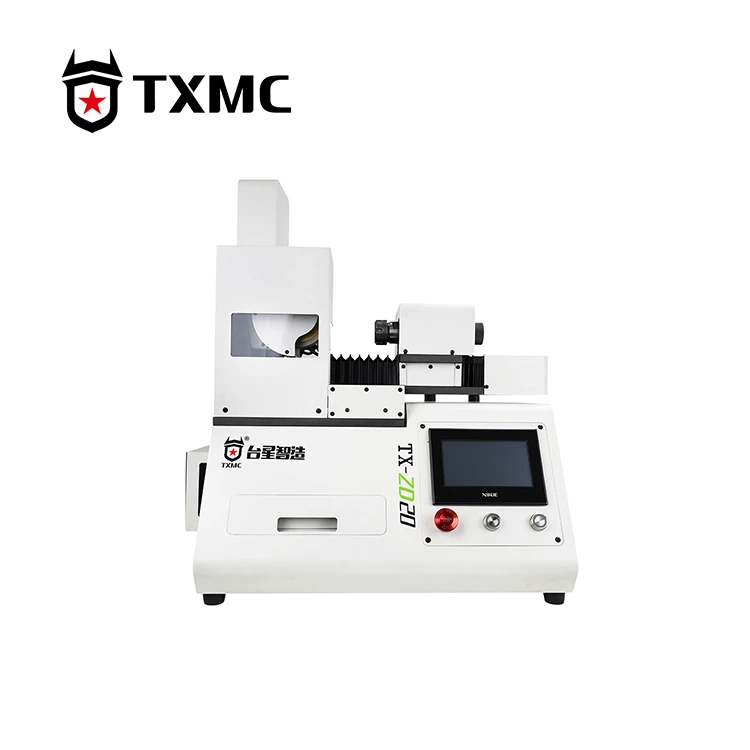

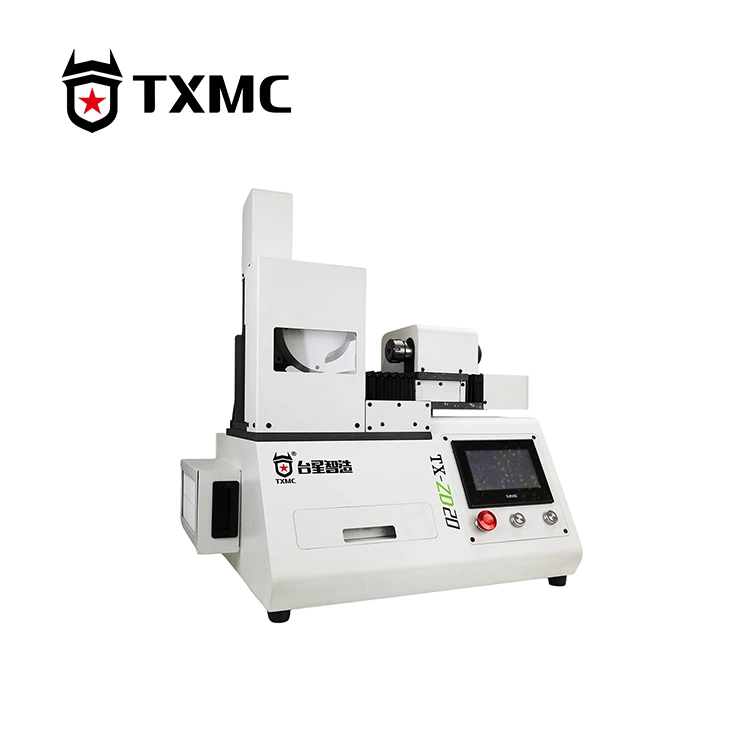

Model: TX-ZD20
Send Inquiry
Product Description

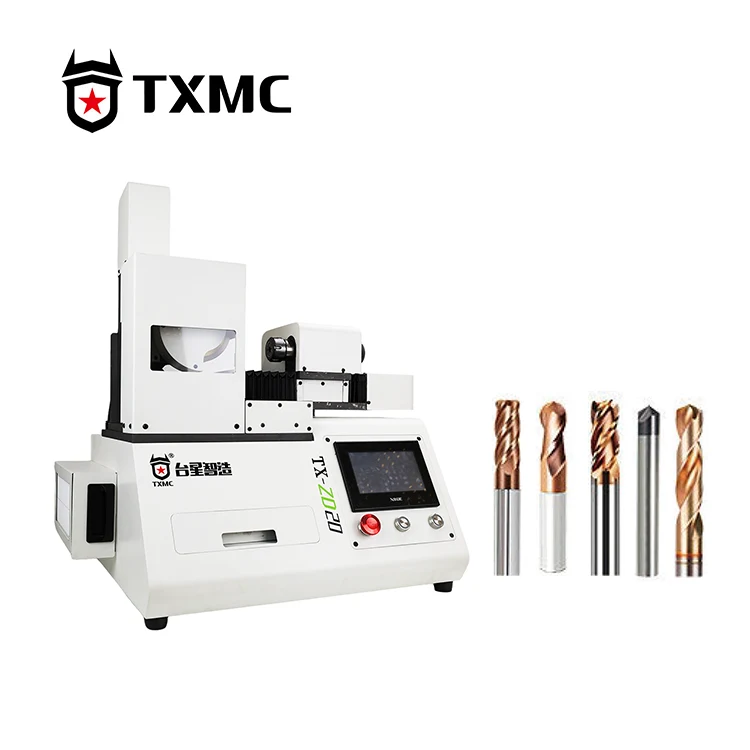

TXMC's newest Multifunctional Automatic Cutters Grinding Machine is designed particularly for automatic sharpening of drill bits, end mills, and other cutting tools. This modern equipment has a touchscreen interface for easy automated operation, as well as an integrated dust collection system to effectively reduce dust pollution in the workplace.

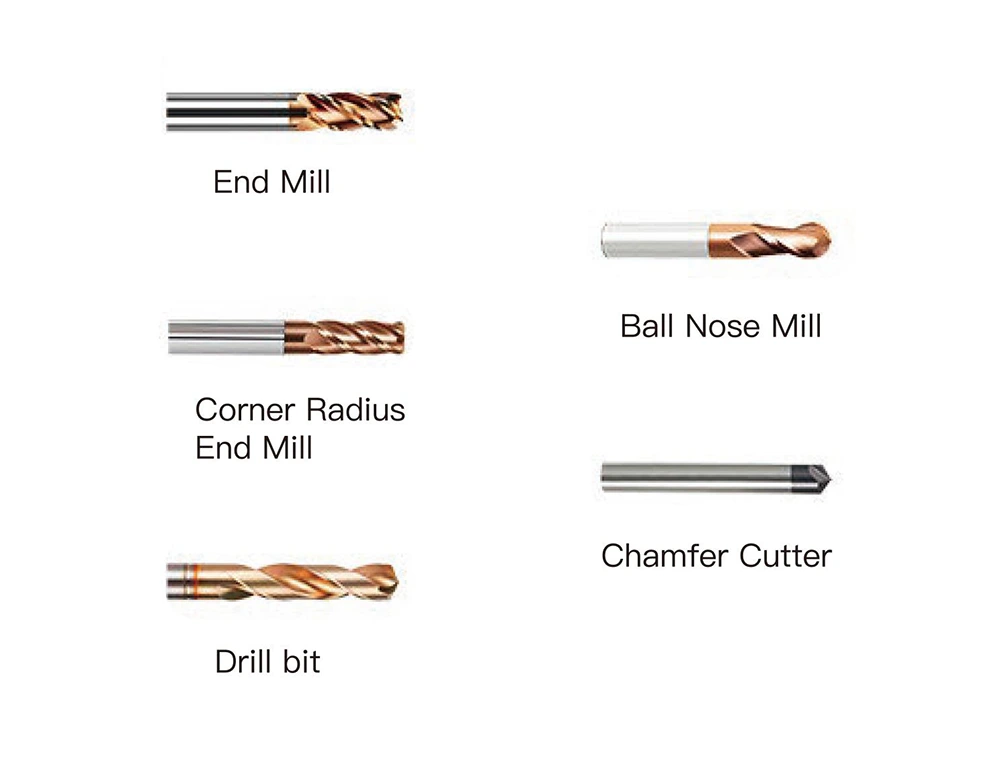

As standard, the grinding machine supports sharpening for five types of tools: chamfering tools, drill bits, end mills, corner radius end mills, and ball nose end mills.

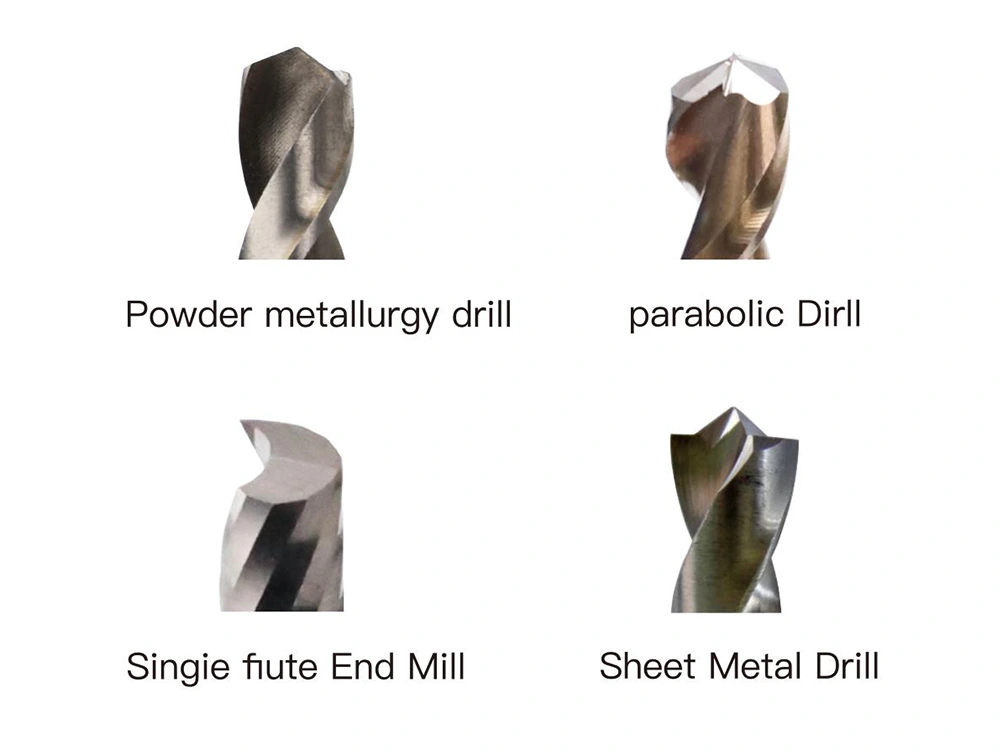

Optional accessories are available for parabolic drills, single-flute end mills, sheet metal drills, and PM (powdered metal) drills. The built-in dust extraction system effectively reduces dust pollution.
Products Parameter
|
Model |
TX-ZD20 |
|
End Mill Corner Radius End Mill Diameter Range flutes Options |
4-20mm 2/3/4 Flutes |
|
Drill Bit Diameter Range Angle Options |
4-20mm 120°,140°Optional |
|
Ball Nose Diameter Range |
R2、R3、R4、R5、R6 |
|
Rated Tool Length |
≥60mm Hollow Core Holder |
|
Compatible Materials |
Tungsten steel Carbide HSS |
|
Grinding wheel(Standard) |
Brazed SDC 2 pcs |
|
Dimensions (L×W×H) |
63.5*57*80cm |
|
Net Weight |
85.5 kgs |

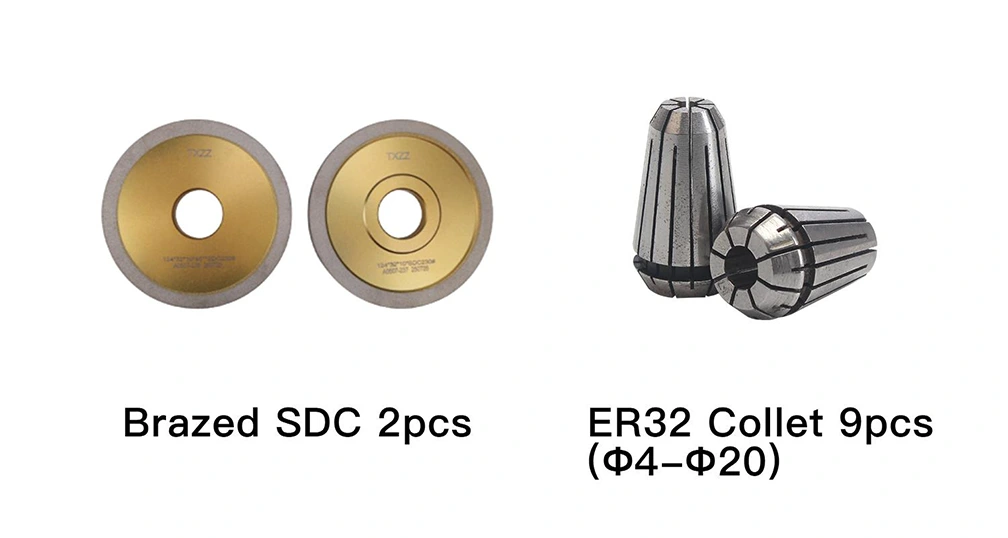

Standard Accessories
TX-ZD20 Multifunctional Automatic Cutters Grinding Machine Standard Accessories include:
① ER32 Collets: 9pcs (Φ4; Φ6; Φ8; Φ10; Φ12; Φ14; Φ16; Φ18; Φ20)
② Grinding Wheels:2pcs (one 45°Bevel Angle Brazing grinding wheel, one Flat wheel Brazing grinding wheel)

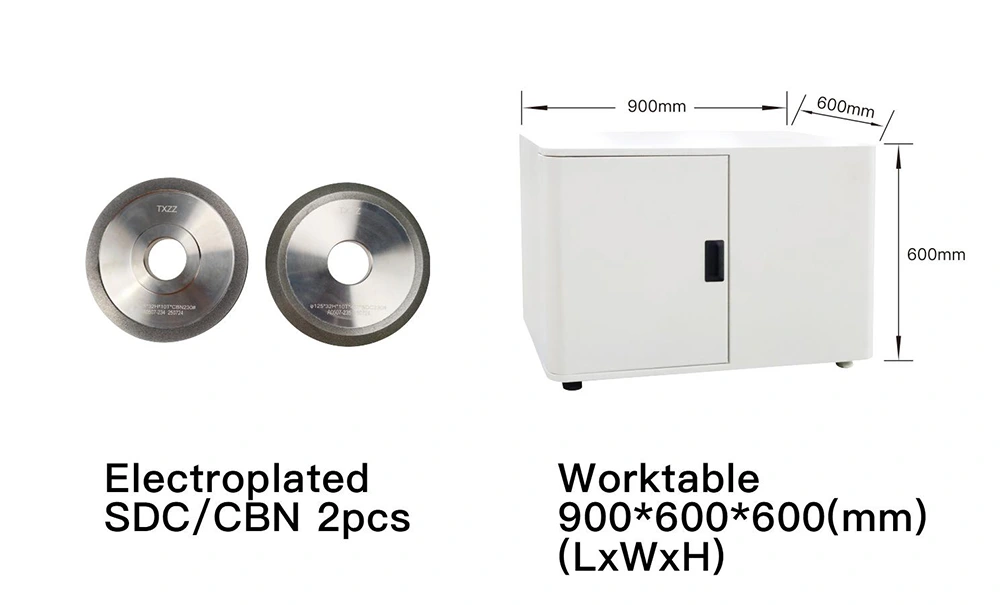

Optional accessories available:
① Electroplating Grinding Wheel
② Worktable
