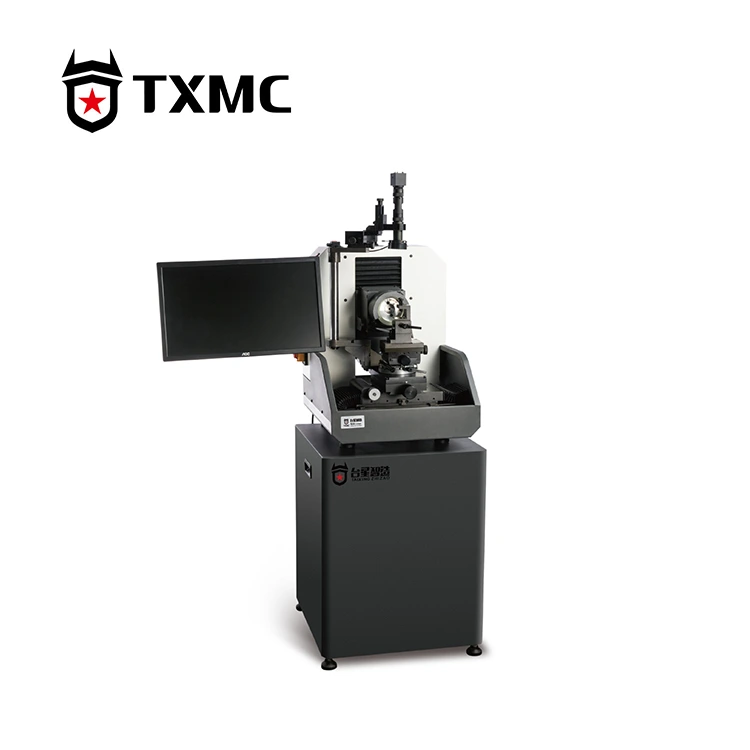

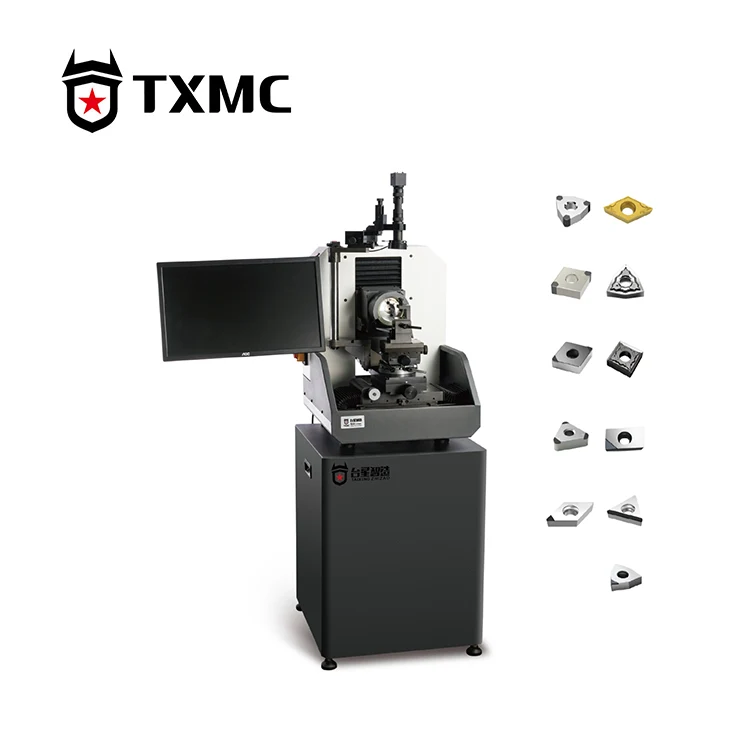

PCD Lathe Tool Grinder

TXMC's advanced PCD Lathe Tool Grinder is equipped with a 30x magnification CCD high-definition camera. With its optical projection technology, it achieves high definition, excellent image quality and distortion-free characteristics.The detection precision and resolution can approach 0.005mm, and it can precisely measure tool length, angle, and arbitrary arc radius.

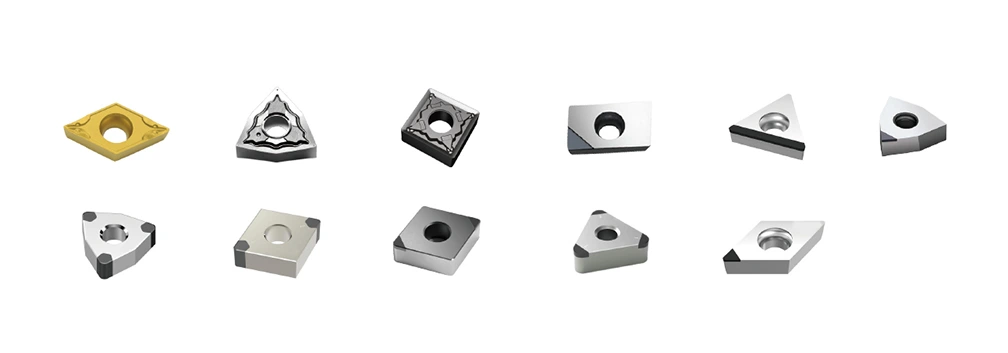

The TX-M4 lathe tool grinder includes a water-cooling feature, which ensures dimensional precision during tool regrinding and prevents excessive temperatures from impacting machining quality. The machine body has a high structural strength, which ensures consistent and dependable grinding. It allows you to regrind ultra-hard materials like PCD and PCBN inserts, as well as design non-standard radius scales. It may also repairable ball type (SR) with specific accessories, allowing it to meet more customised machining requirements.

Products Parameter

Optional Accessories

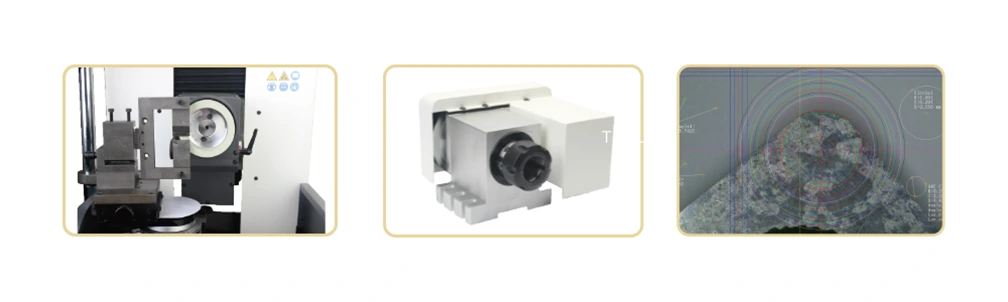

Optional accessories for PCD Lathe Tool Grinder:

A negative chamfering fixture for precise regrinding of CBN inserts with negative chamfers; and a round bar grinding device for machining tools with round shanks (including outer diameter and SR operations), with a clamping range covering 1-25mm, further expanding its application scenarios.
