Spiral End Mill Sharpener

TXMC is a supplier specializing in the research and development of Spiral End Mill Sharpener, committed to providing customers with more efficient, precise, and reliable tool regrinding solutions. With years of industry expertise, our product line includes over sixty types of specialized sharpeners, such as fully automatic cutter grinders and universal tool grinders.
Model: TX-X6/X6A/X7

Send Inquiry

Product Description

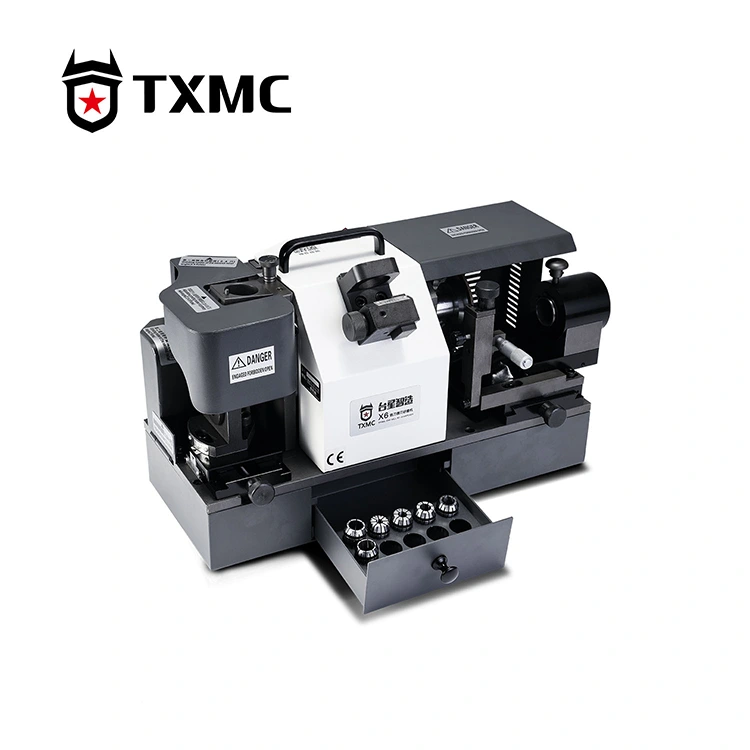

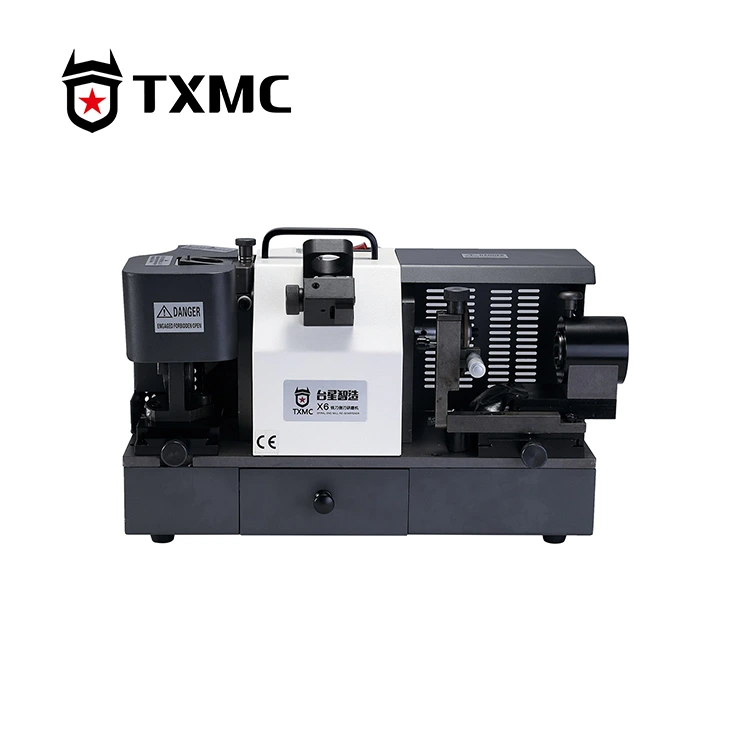

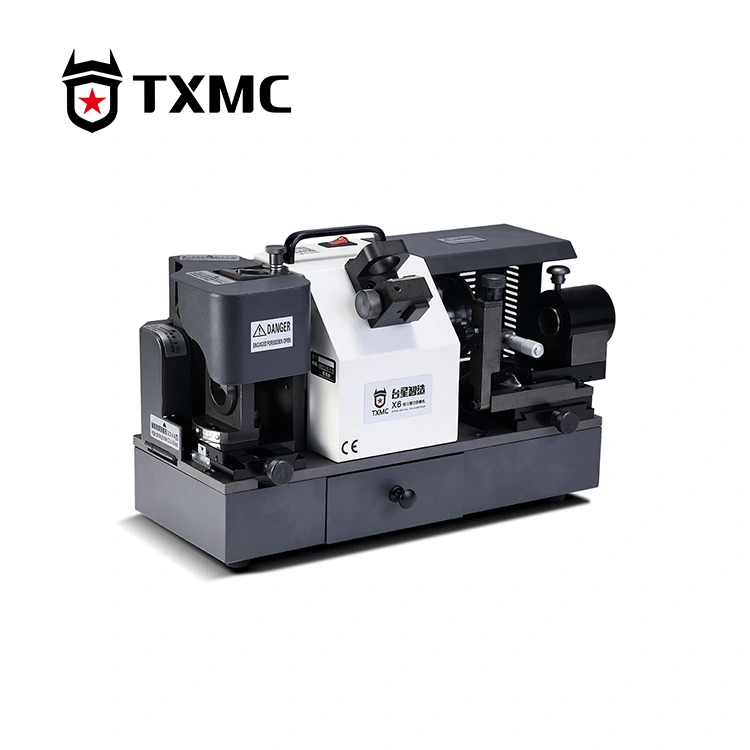

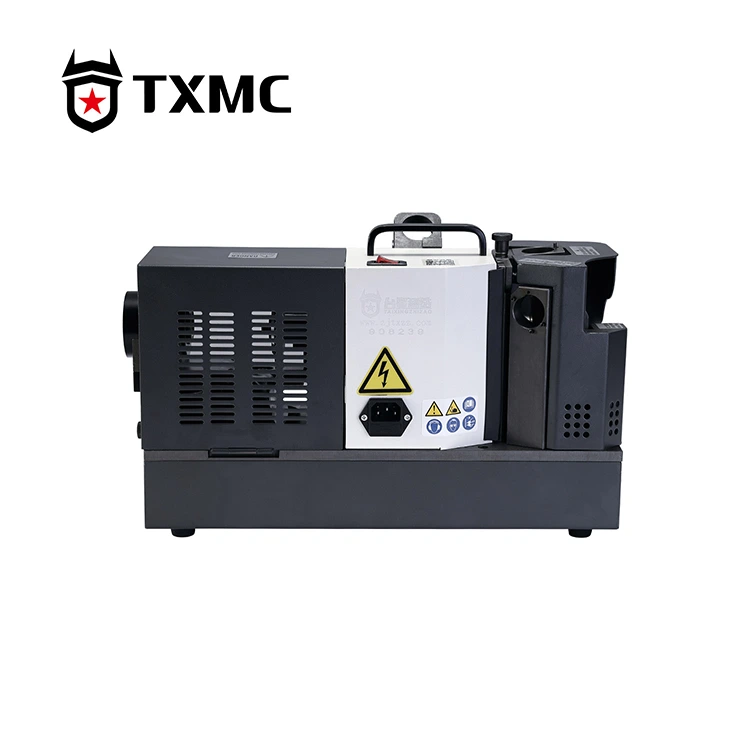

The TXMC Spiral End Mill Sharpener, made in China, is a high-efficiency solution designed specifically for precision tool sharpening. It can precisely and swiftly repair different helical end mills, considerably enhancing tool usage and making it the favored choice for the precision manufacturing sector.

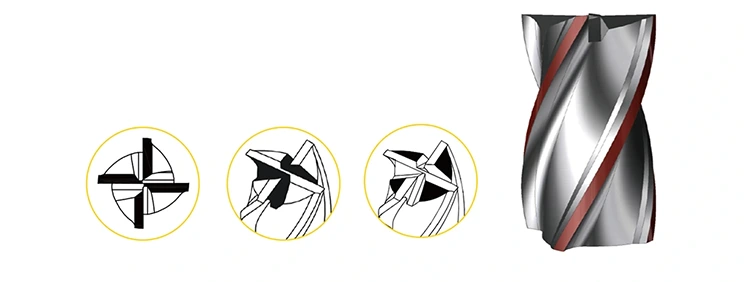

Precision Sharpening： Building upon the performance of the TX-X3 series, this machine adds the function of sharpening the side edges of helical end mills, thus restoring the tool's sharpness.

High Efficiency and Convenience: Simple operation; no complex skills are required for easy sharpening, significantly reducing actual costs.

Precision Structure:The side edge grinding structure adopts the cross guide rail and precision bearing to make the grinding effect of the side edge of the milling cutter more stable, and it can grind the double cutting edge angle close to the new cutter.

Spiral End Mill Sharpener

Products Parameter

Model	TX-X6	TX-X6A	TX-X7
Grinding range	Φ4-Φ14	Φ4-Φ20	Φ12-Φ30
Voltage	220V	220V	220V
Power	160W	160W	250W
Speed	4400RPM	4400RPM	4400RPM
Dimension	54×25×31cm	58×32×27cm	58×33×38cm
Weight	22KGS	27KGS	42KGS

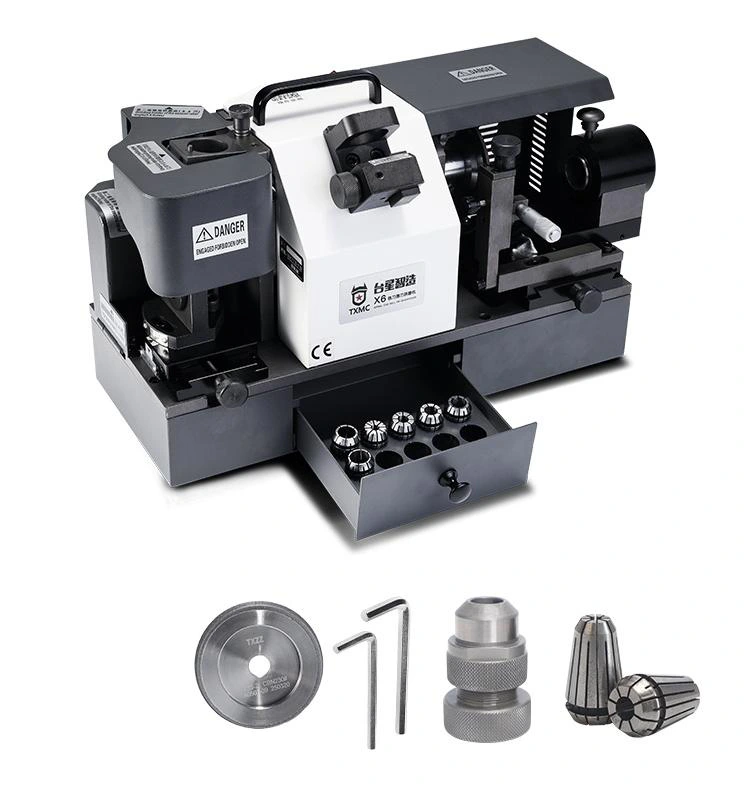

Standard Accessories

Model	TX-X6	TX-X6A	TX-X7
Grinding Wheel	SDC (for Carbide)×1、Resin Wheel×1	SDC (for Carbide)×2、Resin Wheel×1	SDC (for Carbide)×1、Resin Wheel×1
Standard Collet	6 pcs(Ф4；Ф6；Ф8；Ф10；Ф12；Ф14) Type 15 collet： 5 pcs（Ф6；Ф8；Ф10；Ф12；Ф14）	9 pcs(Ф4；Ф6；Ф8；Ф10；Ф12；Ф14；Ф16；Ф18；Ф20) Type 20 collet： 8 pcs（Ф6；Ф8；Ф10；Ф12；Ф14；Ф16；Ф18；Ф20）	10 pcs(Ф12；Ф14；Ф16；Ф18；Ф20；Ф22；Ф24；Ф26；Ф28；Ф30)
Chuck Set	2 sets	4 sets	3 sets
Option Accessories	Grinding wheel :CBN (for HSS)

Spiral End Mill Sharpener

Learn more

Side cutting edge length range of the TX-Z6/X6A/X7 series Spiral End Mill Sharpener:

TX-X6/X6A: Designed specifically for end mills with a side cutting edge length ≤ 50mm.

TX-X7: Offers greater processing capacity, capable of grinding end mills with a side cutting edge length ≤ 60mm.

Furthermore, the entire series supports deep customization, with the maximum grinding range expandable to 80mm, flexibly meeting your special machining needs.
