Step Drill Bit Sharpener

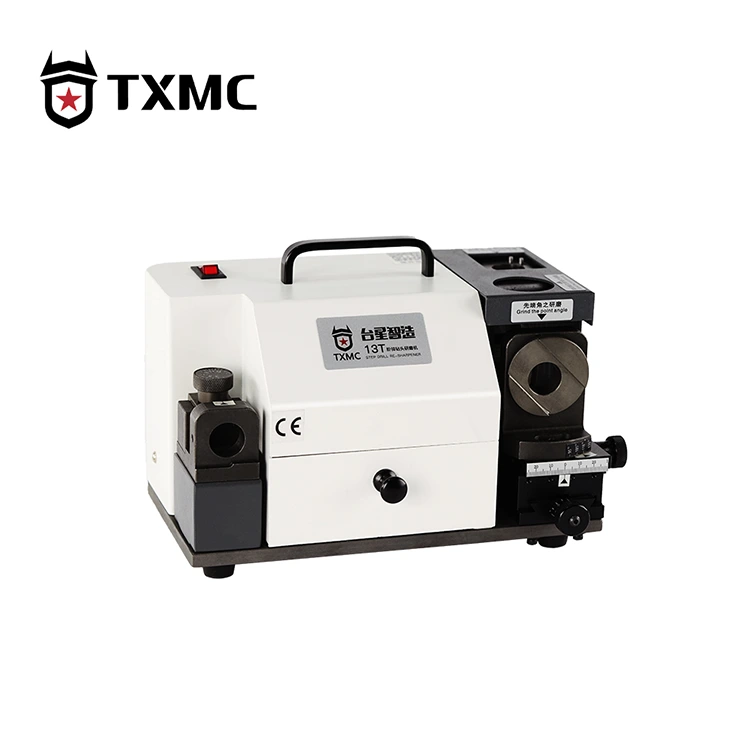

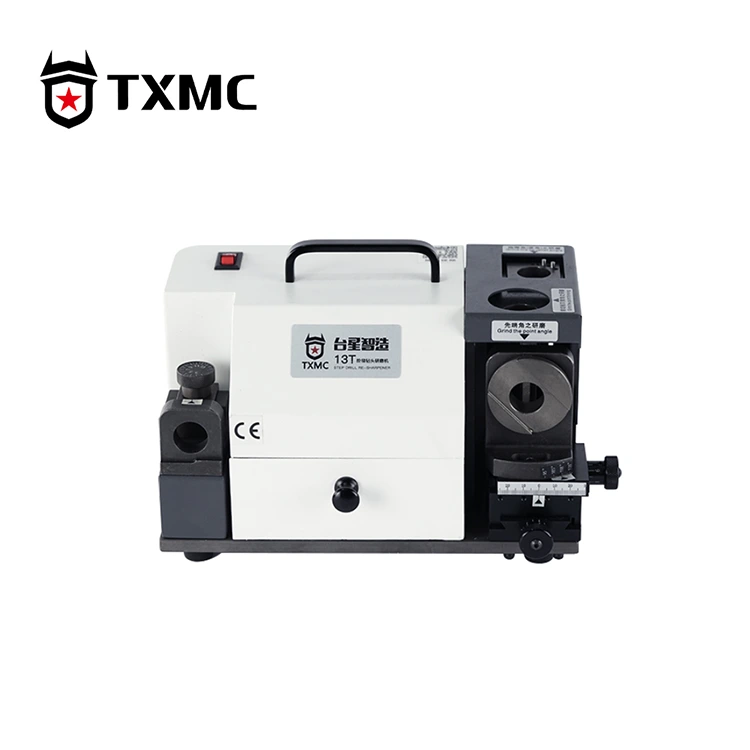

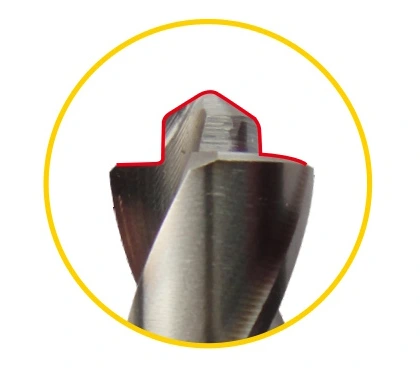

The TXMC Step Drill Bit Sharpener is a customized step drill bit refurbishing machine.It enables accurate and quick drill bit refurbishment without the need for expert knowledge thanks to its user-friendly operation and Taiwanese diamond grinding wheels. Step drill bits between 4 and 14 mm may be used with the machine, which has an angle range of 90 to 130 degrees. Because of its small size and portability, it can be used in a variety of settings, such as home workshops, SME production lines, and individual maintenance work, greatly lowering the cost of drill bit replacement and raising the rate of drill bit reuse.

Products Parameter

Standard Accessories

Learn More

1.What are the differences between 13T and 13Q?

The key difference between the 13T and 13Q models lies in their compatible grinding tool types: the 13T is designed for grinding step drill bits, while the 13Q is capable of grinding thin-plate, three-point, and flat drill bits.

2.What are the grinding steps?

Grinding Steps (Simplified Version):

①　Tool Setting: Place the drill bit into the fixture and onto the tool setting holder to perform the tool setting step.

②　Angle Setting: Set the angle according to requirements.

③　Grinding: Start the machine, place the tool into the grinding hole, and slowly push it towards the grinding wheel to perform grinding.

3.How to clean and maintain the Step Drill Bit Sharpener?

After use, use a brush or air gun to remove any residual metal dust from the machine and check if the grinding wheel is intact.
