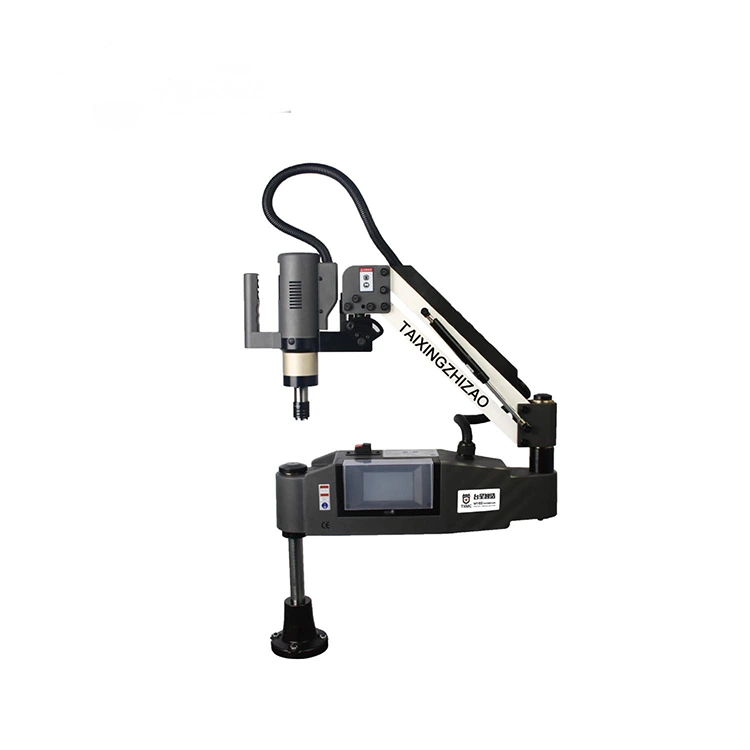

Torque-Controlled Vertical Tapping Machine

As a Torque-Controlled Vertical Tapping Machine manufacturer, TXMC has been continuously developing and producing professional tool grinding machines for many years. It has always adhered to innovation and continuous improvement, and independently developed and produced more than 60 kinds of tool grinding machines. It is one of the leading tool equipment manufacturers in China and abroad.
Model: TX-M12C/24C/30C/36C/48C

Send Inquiry

Product Description

The upgraded TXMC Torque-Controlled Vertical Tapping Machine is an advanced tapping device that integrates high efficiency, flexibility, and precision.It uses a high-performance combination of a precision planetary reducer and a high-quality servo motor to provide stable and dependable operation, thereby lowering failure rates and enhancing long-term operating stability.

Advantages of Torque-Controlled Vertical Tapping Machines:

1.Torque Protection for Safe Operation: Capable of generating variable outputs with high and low torque. Integrated overload prevention and a cutting-edge torque protection technology successfully avoid tap breakage during blind-hole and through-hole machining.

2.Stable Motor Performance: A accurate planetary reducer and high-quality servo motor provide smooth operation and low failure rates.

Products Parameter

Model	TX-M12C	TX-M24C	TX-M30C	TX-M36C
Working radius	1045mm	1045mm	1180mm	1180mm
Stroke	560mm	560mm	705mm	705mm
Rated power	600W	600W	1200W	1200W
Voltage	220V	220V	220V	220V
Rated speed	660RPM	312r/min	200r/min	125RPM
Processing range	M3-M12	M3-M16	M6-M30	M6-M36
