Tungsten Carbide End Mill Sharpener

As a research-driven manufacturer of Tungsten Carbide End Mill Sharpeners, TXMC has developed a range of more than sixty products, including sharpener machines, universal tool grinders, and automatic cutter grinding machines, through continuous independent innovation to satisfy the diverse tool regrinding needs of customers worldwide.
Model: TX-X3S/X3AS

Send Inquiry

Product Description

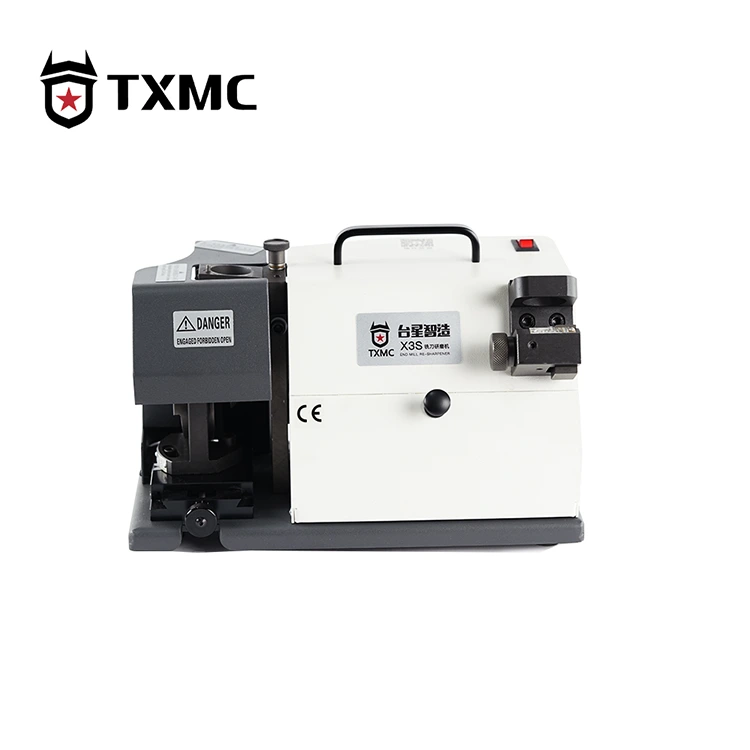

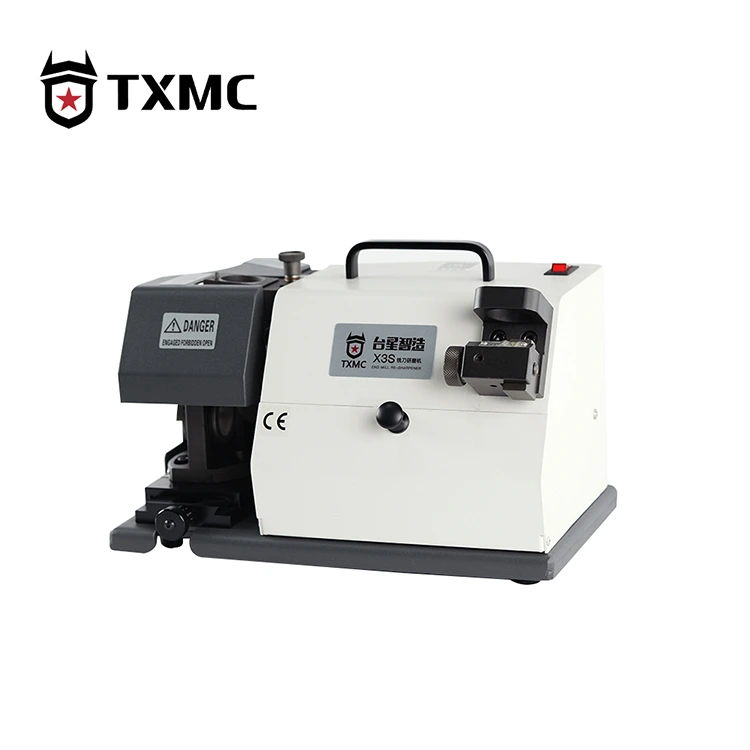

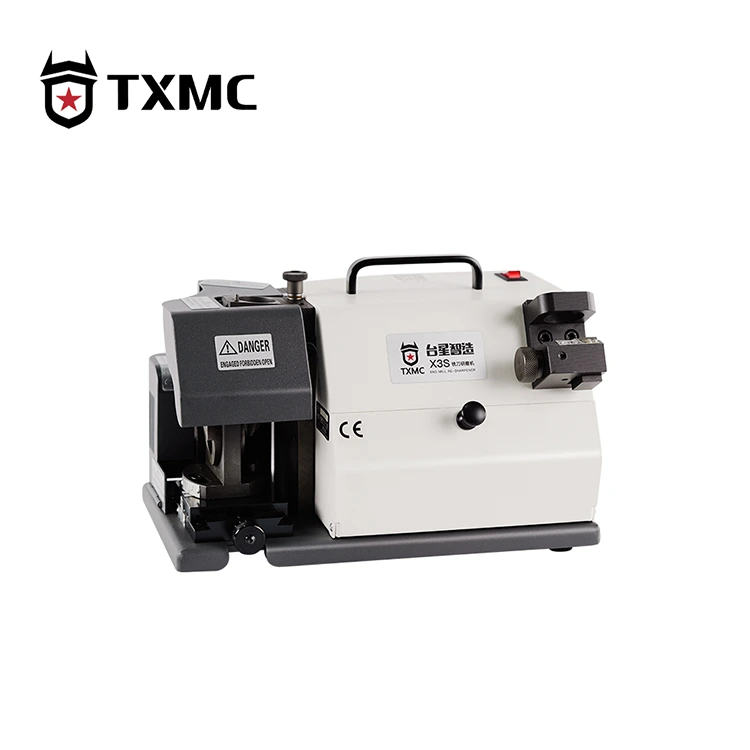

The TXMC X3S/X3AS Tungsten Carbide End Mill Sharpener is CE safety certified, ensuring safe operation.This equipment is an efficient choice for improving tool utilization and significantly reducing production costs.

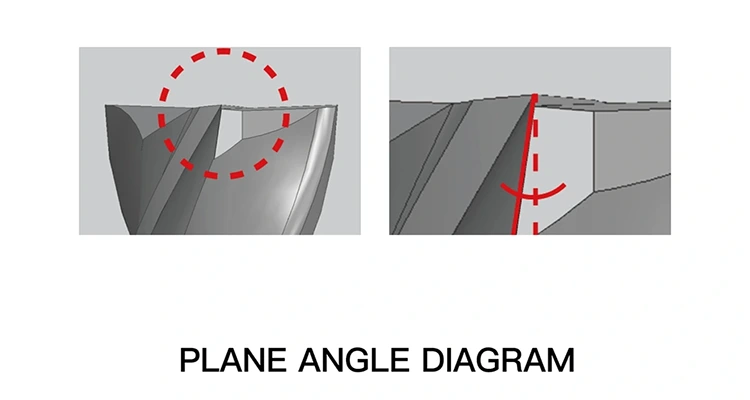

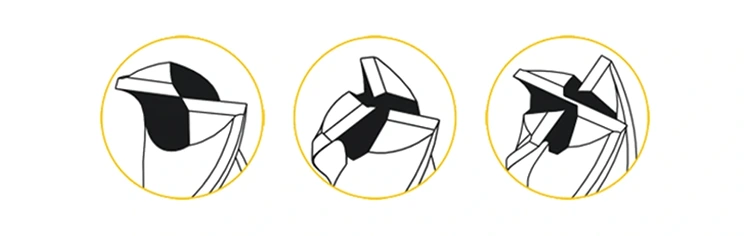

This sharpener can re-grind 2-flute, 3-flute, and 4-flute end mills without requiring technical expertise. It can efficiently repair the end face, chip flutes, and clearance angle of end mills.

The machine's core highlight is its high-precision lifting button wheel. By easily rotating the lifting button wheel, the width and depth of the chip flutes can be easily and accurately controlled, ensuring that every repaired end mill is restored to its factory-grade cutting performance, significantly improving machining efficiency and extending tool life.

Products Parameter

Model	TX-X3S	TX-X3AS
Grinding range	Φ4-Φ14	Φ4-Φ20
Voltage	220V	220V
Power	160W	200W
Speed	4400RPM	4400RPM
Dimension	35×23×24cm	40×24×26cm
Weight	15KGS	16KGS

Standard Accessories

Model	TX-X3S	TX-X3AS
Grinding Wheel	SDC (for Carbide)×1	SDC (for Carbide)×2
Standard Collet	6 pcs(Ф4；Ф6；Ф8；Ф10；Ф12；Ф14)	9 pcs(Ф4；Ф6；Ф8；Ф10；Ф12；Ф14；Ф16；Ф18；Ф20)
Chuck Set	2 sets	4 sets
Option Accessories	Grinding wheel :CBN (for HSS)
