Standard Universal Tapping Machine

TXMC is a supplier of Standard Universal Tapping Machines for production lines. Since its inception, we have been deeply involved in the field of metal cutting and tooling, and we deeply understand the importance of precision, efficiency, and reliability in industrial production. In the future, TXMC will continue to support the development of global manufacturing with more durable and precise products.
Model: TX-M12SE/24SE/30SE/36SE/48SE

Send Inquiry

Product Description

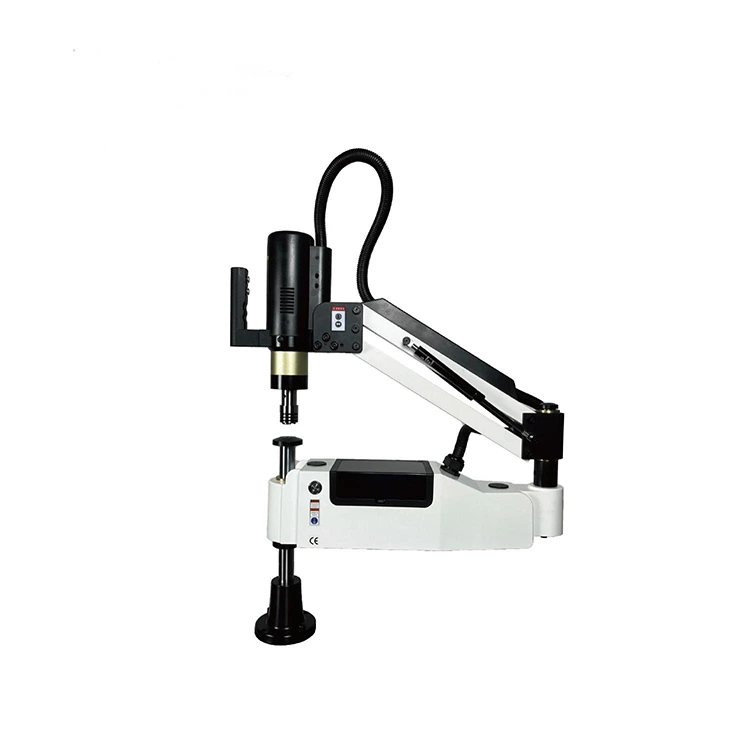

The TXMC series Standard Universal Tapping Machine is a best-selling product designed specifically for the machinery manufacturing industry. This machine has a high-performance servo motor drive, an intelligent control display screen, and both automatic and manual operating modes.It boosts labor efficiency and helping users cut operational costs.

Precise and controllable torque:Standard Universal Tapping Machine features quiet operation, smooth running, energy saving, high speed low torque and low speed high torque, and a built-in overload protection mechanism. Its unique torque protection structure effectively prevents tap breakage during blind hole or through-hole machining.

Highly efficient and stable operation: Equipped with a high-quality servo motor, the speed is flexibly adjustable, ensuring stable and reliable operation. The user interface is simple and intuitive, greatly reducing the difficulty of operation.

Products Parameter

Model	TX-M12SE	TX-M24SE	TX-M30SE	TX-M36SE	TX-M48SE
Working radius	1045mm	1045mm	1180mm	1180mm	1260mm
Stroke	560mm	560mm	705mm	705mm	/
Rated power	600W	600W	1200W	1200W	1200W
Voltage	220V	220V	220V	220V	220V
Rated speed	660RPM	312r/min	200r/min	125RPM	250/50RPM
Processing range	M3-M12	M3-M16	M6-M30	M6-M36	M33-M48/M12-M48
