CNC Inserts Grinding Machine Processing Round Blade
TXMC's China factory has long focused on producing CNC Inserts Grinding Machine Processing Round Blades and tool regrinding tools. With a professional R&D team and strict quality control, we provide stable, precise, and efficient tooling solutions nationwide. Our equipment is successfully applied in industries like hardware and automotive, earning a strong reputation through technological innovation and craftsmanship.
Model: TX-MD400 PLUS
Send Inquiry
Product Description

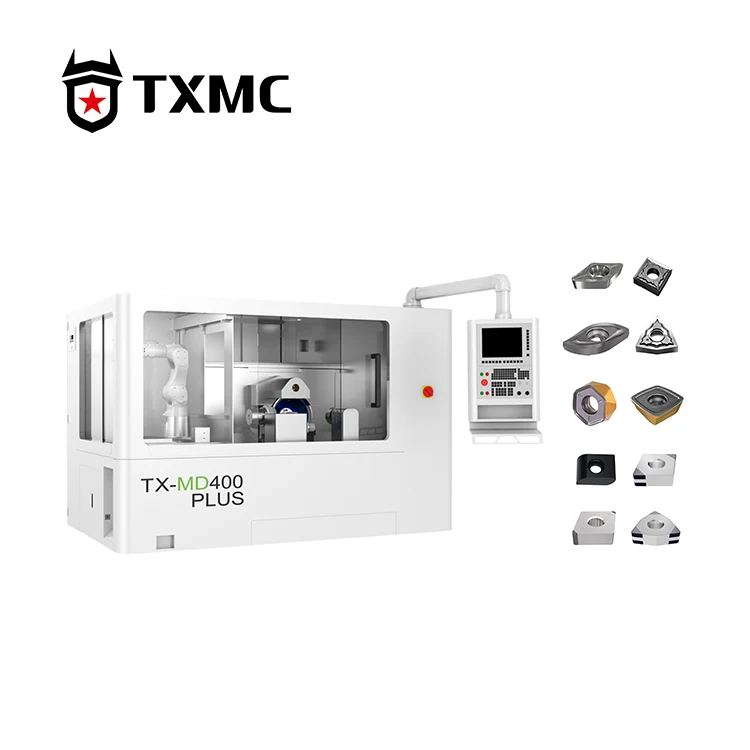

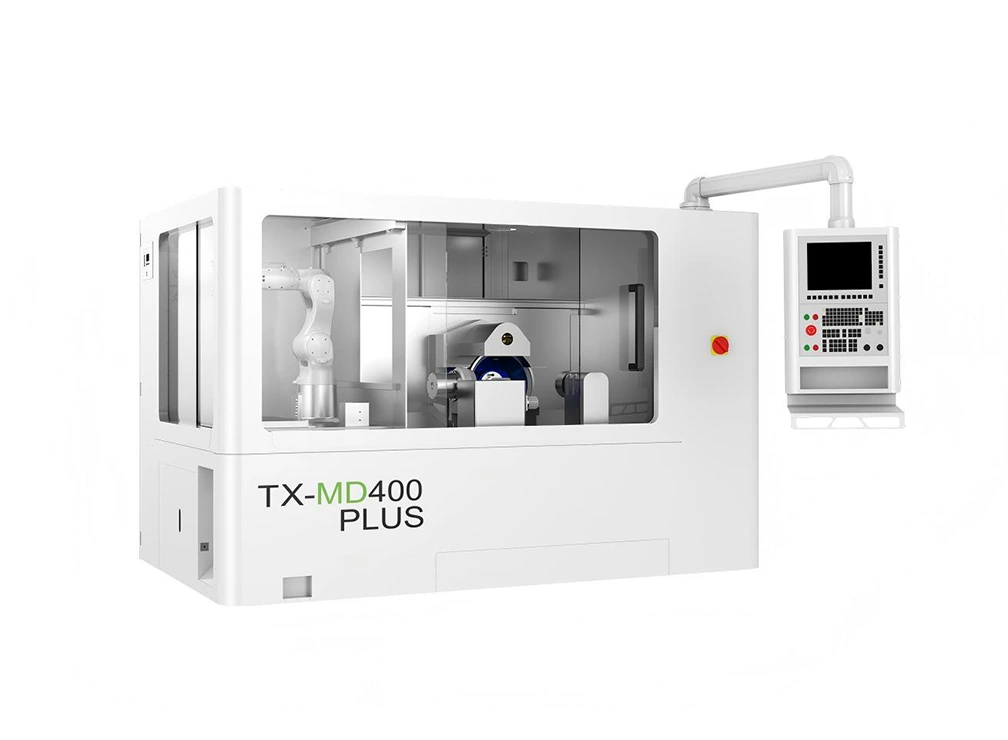

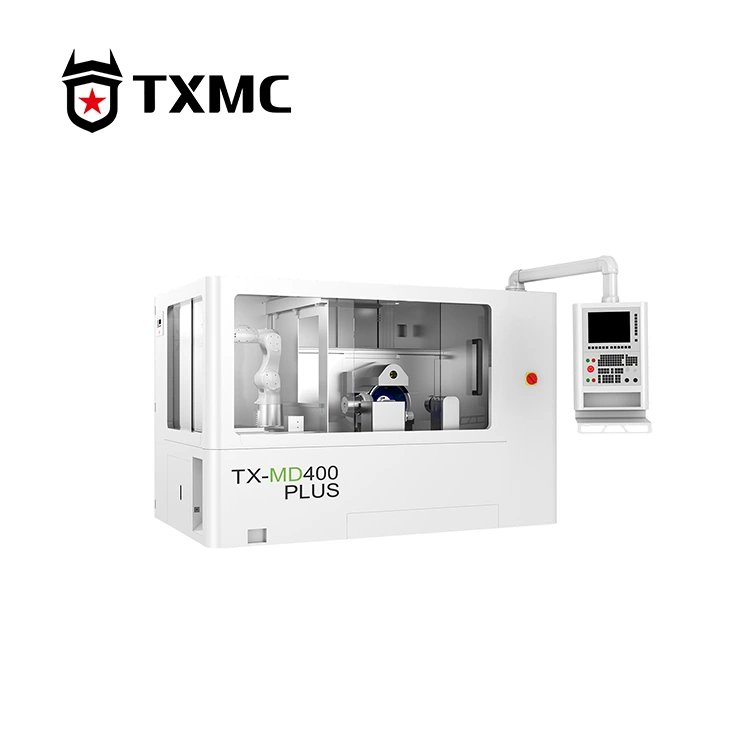

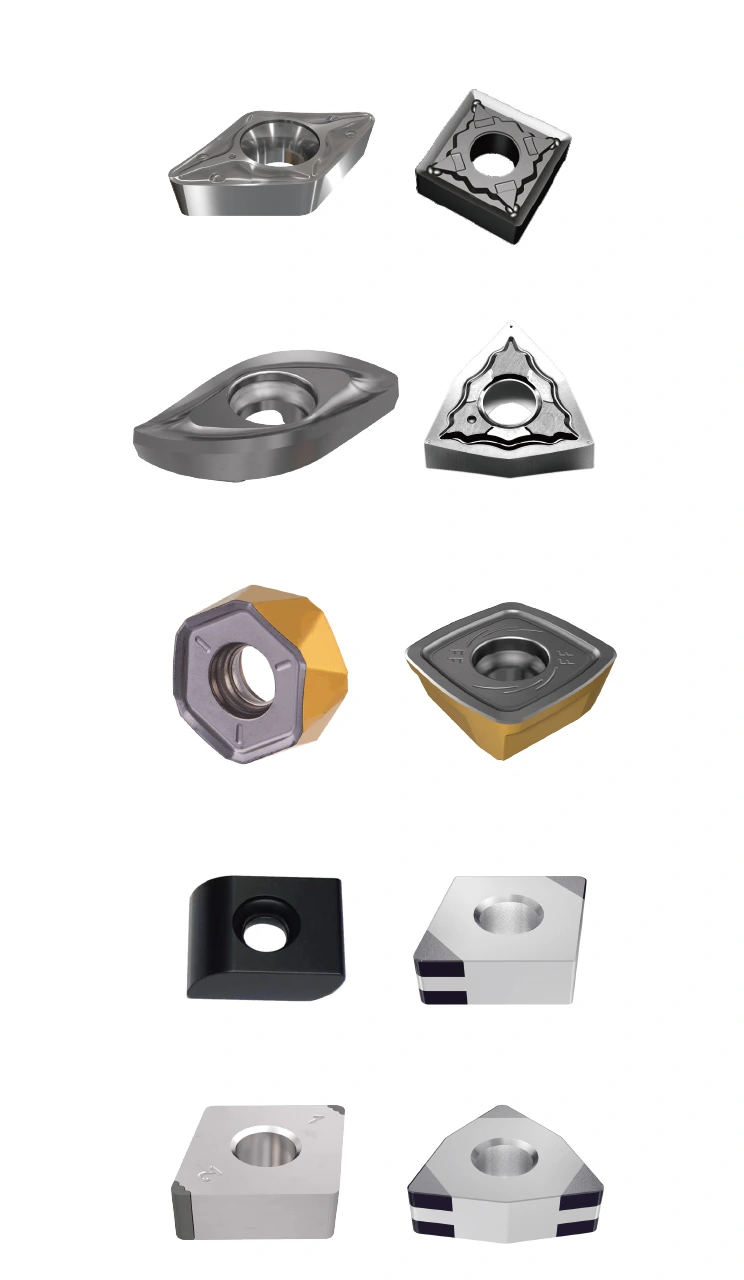

The TXMC brand TX-MD400 PLUS CNC Inserts Grinding Machine Processing Round Blade is designed specifically for grinding indexable inserts and can complete double-sided chamfering in a single setup. The machine has a unique non-standard insert grinding capability that allows for rapid machining settings for complicated curves, involutes, and other specific grinding needs by simply importing drawings. It also features a database with specifications for all ISO standard inserts, allowing operators to simply perform insert machining by inputting appropriate parameters based on process needs.
Products Parameter
|
Minimum inscribed circle of insert |
2.8mm |
Maximum rotation speed of B-axis |
360°/S |
|
Maximum circumscribed circle of insert |
40mm |
B-axis positioning accuracy |
0.005° |
|
Grinding wheel diameter |
400mm |
B-axis repeated positioning accuracy |
0.002° |
|
Maximum spindle speed |
2000 r/min |
C-axis rotation range |
-90°~ +28° |
|
Spindle motor power |
12KW |
Maximum rotation speed of C-axis |
150°/S |
|
X-axis journey |
160mm |
C-axis positioning accuracy |
6 arc seconds |
|
X-axis maximum moving speed |
10000mm/min |
Maximum clamping thickness |
25mm |
|
X-axis positioning accuracy |
0 .002 mm |
Clamping pressure |
500~9000N |
|
X-axis repeated positioning accuracy |
0.001mm |
Compressed air pressure |
0.6MPa |
|
Y-axis joumey |
580mm |
Adjustment mode |
Online Adjustment |
|
Y-axis maximum moving speed |
10000mm/min |
Total electrical power |
30 kVA |
|
Y-axis positioning accuracy |
0.002mm |
Machine weight |
6000KGS |
|
Y-axis repeated positioning accuracy |
0.001mm |
Dimensions |
295x190x211cm |
Learn more
The CNC Inserts Grinding Machine Processing Round Blade features improved core configurations. The X and Y axes employ THK high-precision roller guides with Akribis linear motors, while the B and C axes use DD direct-drive motors with a patented structure that provides low noise, low torque variation, and ultra-high rigidity, allowing for long-term maintenance-free operation. In terms of power, it has a 12kW Taiwan synchronous electric spindle that ensures rigidity, shock resistance, and endurance through constant torque control, resulting in increased grinding force and quieter operation. It uses KEYENCE probes to accurately measure the cutting tool's outer circumference and macro-compensate the center for precise inner circle dimensions. The machine body is made of HT300 grade gray cast iron, which is structurally stable and not easily deformed after natural aging treatment, and has excellent shock resistance.
