CNC Peripheral Inserts Grinding Machine

As one of the top domestic manufacturers of CNC Peripheral Inserts Grinding Machines, TXMC is headquartered in Wenling, Zhejiang. With over 20 years of tooling expertise, it manages the full chain from R&D to trade, serving 128 countries. Its product range includes precision grinders for drill bits, taps, lathe tools, and peripherals, and TXMC looks forward to creating future value with you.
Model: TX-SE400

Send Inquiry

Product Description

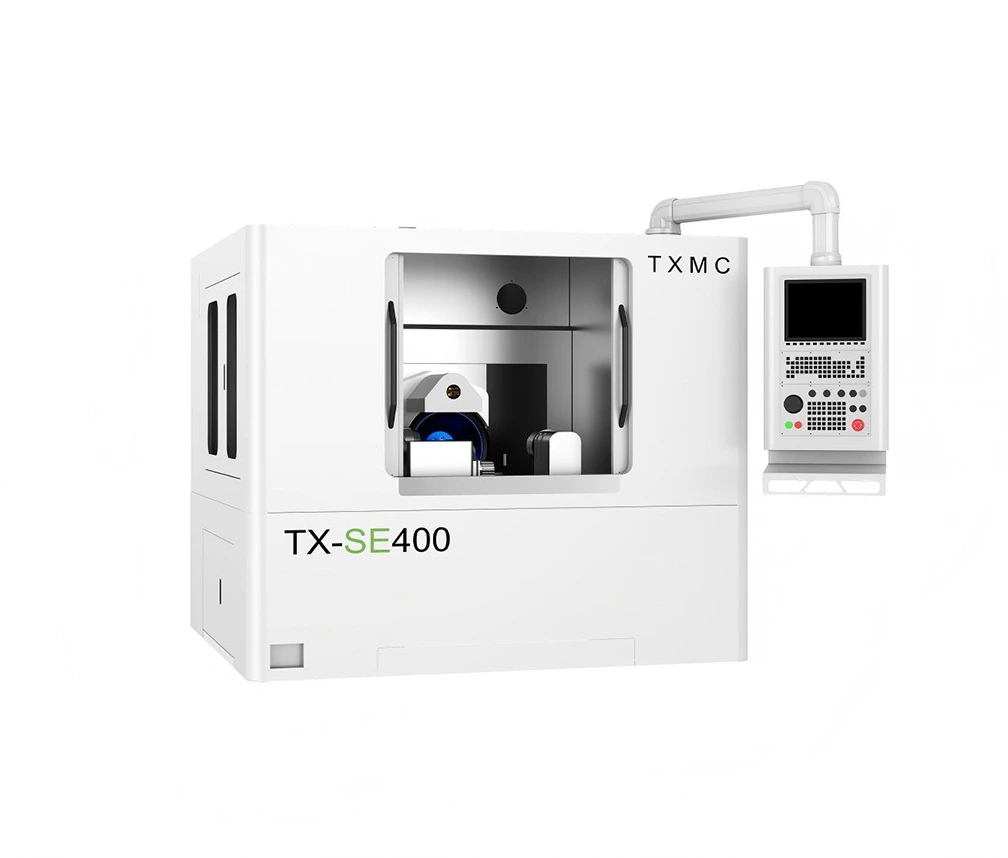

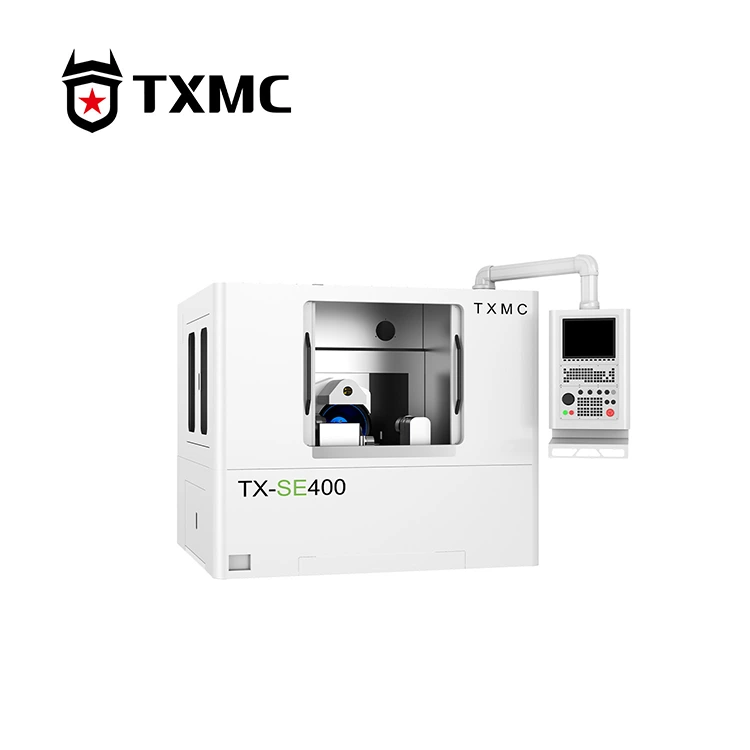

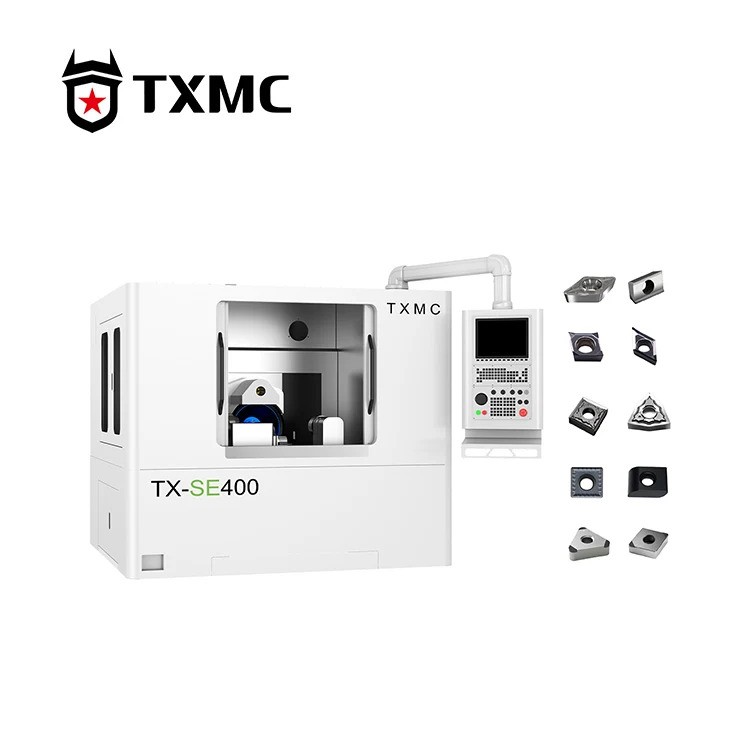

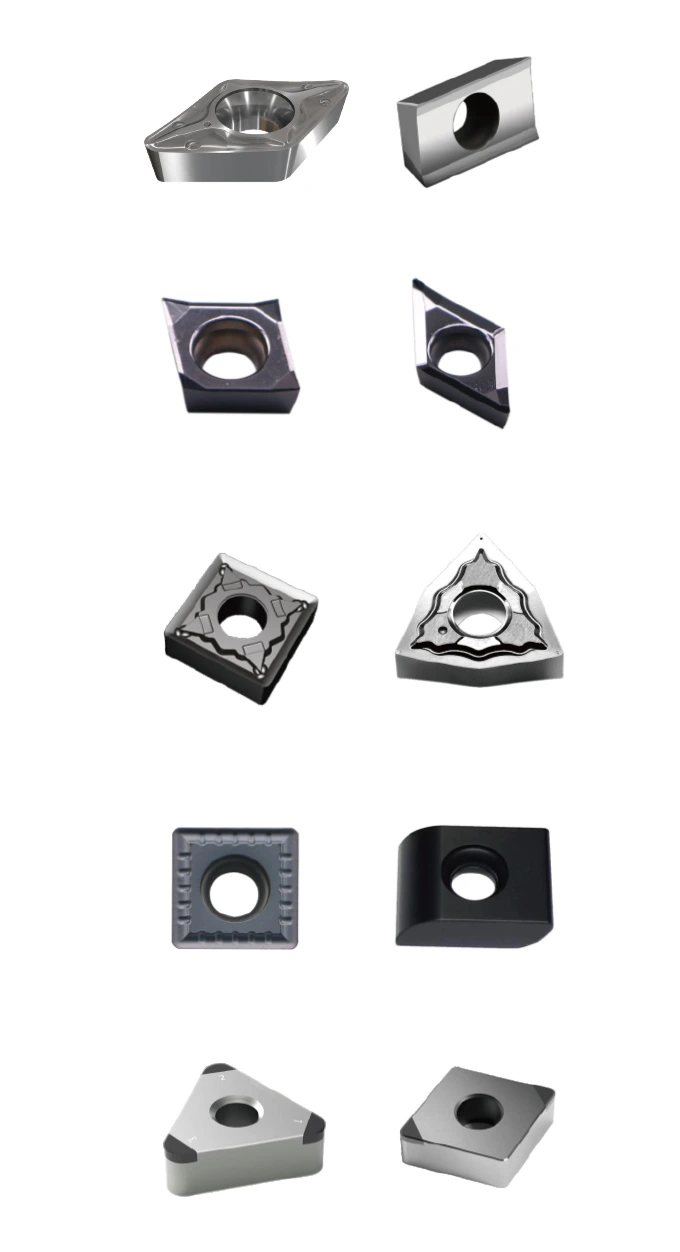

The TXMC brand TX-SE400 CNC Peripheral Inserts Grinding Machine is a specialized machine for grinding the peripheral edges of indexable inserts. It not only enables single-sided chamfering of inserts but also innovatively develops non-standard insert grinding capabilities. For grinding complex curves and involutes, machining settings can be completed with a single click by importing drawings.

Products Parameter

Minimum inscribed circle of insert	2.8mm	Maximum rotation speed of B-axis	360°/S
Maximum circumscribed circle of insert	40mm	B-axis positioning accuracy	0.005°
Grinding wheel diameter	400mm	B-axis repeated positioning accuracy	0.002°
Maximum spindle speed	2000 r/min	C-axis rotation range	-90°~ +28°
Spindle motor power	5.5KW	Maximum rotation speed of C-axis	150°/S
X-axis journey	100mm	C-axis positioning accuracy	6 arc seconds
X-axis maximum moving speed	10000mm/min	Maximum clamping thickness	25mm
X-axis positioning accuracy	0.002 mm	Clamping pressure	500~9000N
X-axis repeated positioning accuracy	0.001mm	Compressed air pressure	0.6MPa
Y-axis joumey	200mm	Adjustment mode	Online Adjustment
Y-axis maximum moving speed	10000mm/min	Total electrical power	30 KVA
Y-axis positioning accuracy	0.002mm	Machine weight	4000 kg
Y-axis repeated positioning accuracy	0.001mm	Dimensions	230x195x195cm

CNC Peripheral Inserts Grinding Machine

Learn more

The CNC Peripheral Inserts Grinding Machine has an extremely beneficial configuration. The X and Y axes use HIWIN high-precision roller guides with Akribis linear motors, the B-axis utilizes a DD direct-drive motor with a patented construction, and the C-axis uses a worm gear rotary table with a time-grid angle encoder to achieve a repeatable accuracy of 6 arcseconds. The total design provides minimal noise, low torque fluctuation, extremely high stiffness, and long-term maintenance-free operation. The 5.5KW synchronous high-torque electric spindle employs continuous torque management, providing superior stiffness, vibration resistance, and longevity, resulting in increased cutting force and quieter operation. It is equipped with a KEYENCE probe, which allows it to properly measure the insert's outside circumference dimensions and macro-compensate the center, assuring consistency in the inscribed circle and clearance angle dimensions.
