Manual PCD Inserts Grinding Machine
TXMC is a manufacturer of Manual PCD Inserts Grinding Machines, specializing in tool grinders, universal tool grinders, and precision machine tools. Through independent R&D, TXMC has developed over sixty types of tool regrinding equipment. Serving over fifty countries, it is a leading global manufacturer in the industry.
Model: TX-M6
Send Inquiry
Product Description

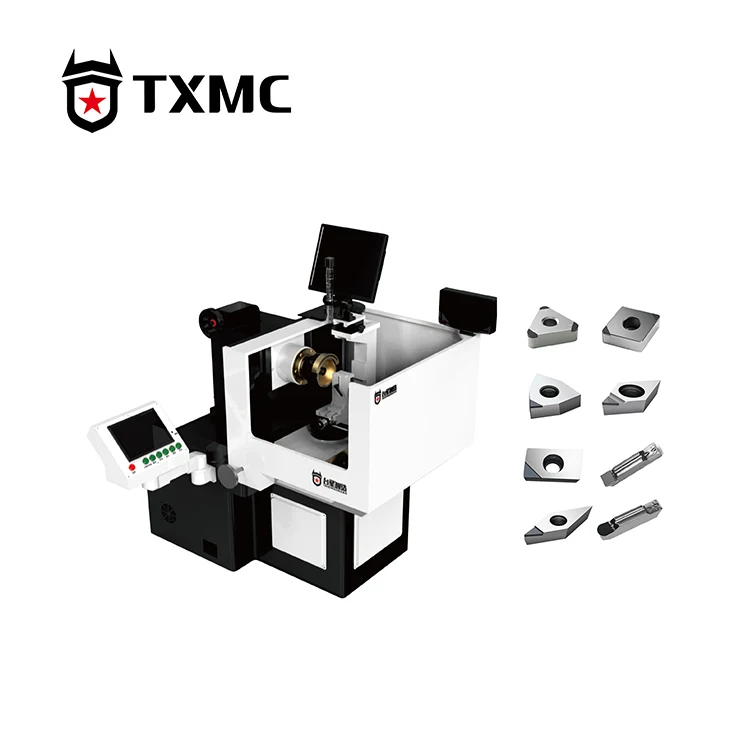

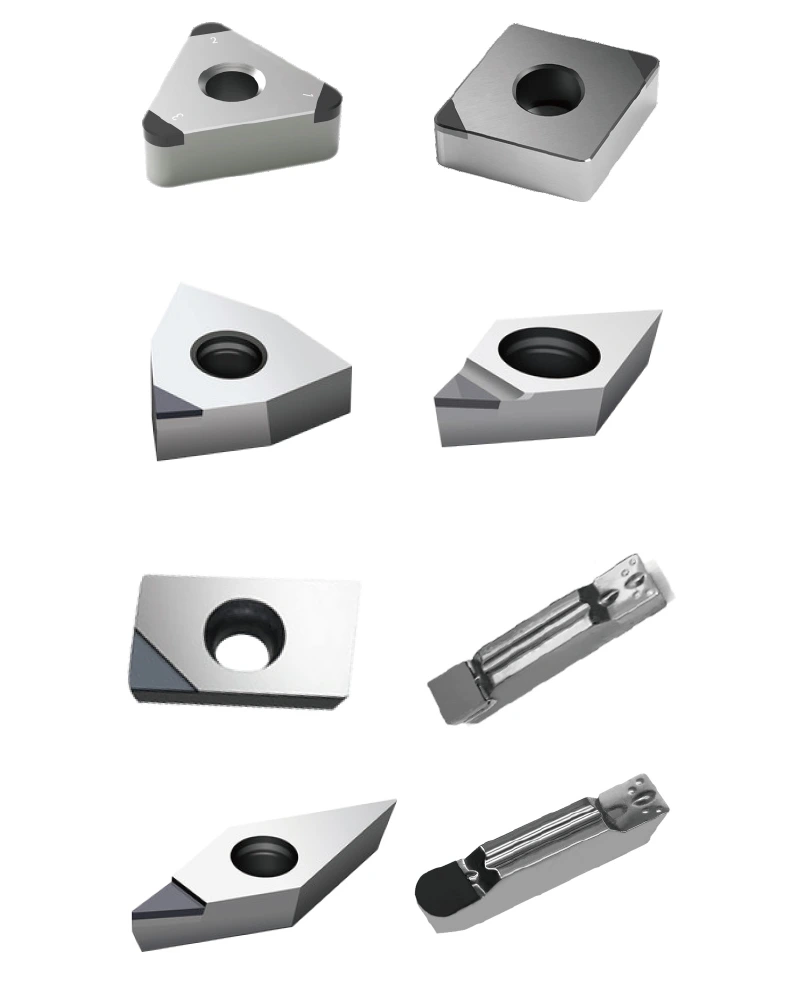

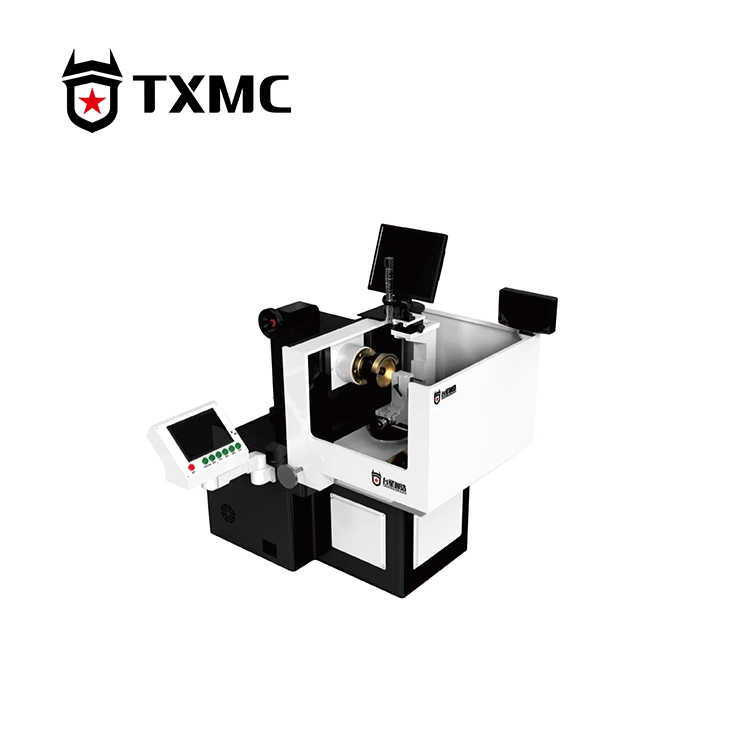

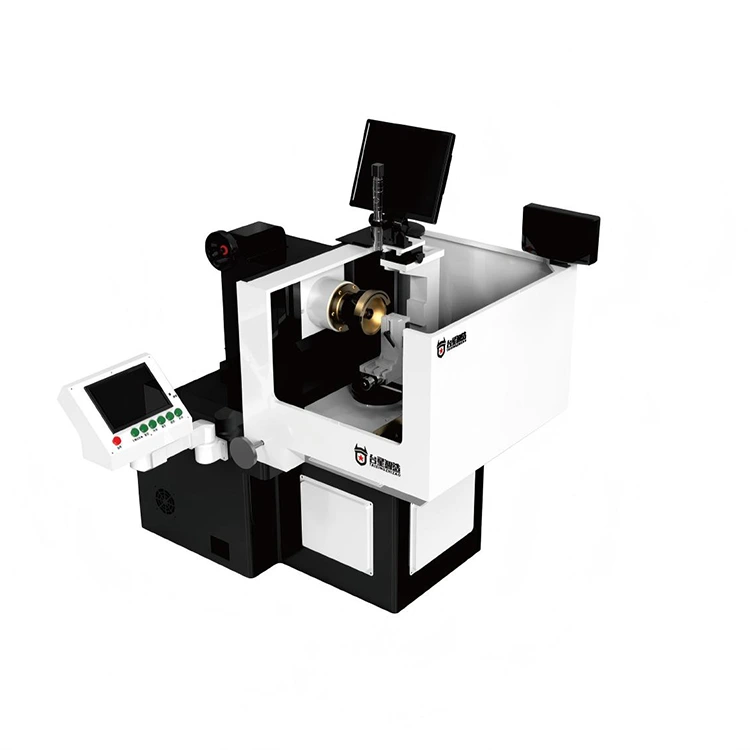

The TX-M6 durable Manual PCD Inserts Grinding Machine is also a manual precision tool grinder, designed for high-precision machining of PCD, CBN, and carbide tools. It balances machine accuracy, structural rigidity, ease of operation, and production efficiency. The machine innovatively features a smart CCD camera, allowing for arbitrary planning of radius (R) angle markings. It integrates practical functions such as angle measurement and parallel line comparison, quickly adapting to the machining needs of non-standard tools.
The machine body is made from a single piece of high-quality casting and has a pressure-resistant structural design.Natural aging treatment improves stability and decreases deformation while retaining excellent accuracy. The inclusion of imported linear encoders and angle encoders enhances precision. The independently built operating system also allows clients to program the machine as needed, making it more convenient and efficient.
Products Parameter
|
X-axis journey |
300mm |
C-axis journey |
±110° |
|
X-axis repeated positioning accuracy |
0.01mm |
C-axis repeated positioning accuracy |
0.01° |
|
Y-axis joumey |
100mm（manual） |
C-axis braking method |
Disc Brake Activated |
|
Y-axis repeated positioning accuracy |
0.002mm |
Fixture X-axis |
65mm |
|
Maximum travel speed of two axes |
300mm/s |
FixtureX-axis straightness |
0.01mm |
|
Spindle angle travel |
-5°to 25°(manual) |
FixtureY-axis |
65mm |
|
Spindle rotation method |
electric spindle |
Fixture Y-axis straightness |
0.01mm |
|
Spindle power |
3KW |
Visual imaging range |
R0.05-R10 (adjustable) |
|
Spindle speed |
6000RPM |
Dimension |
120*120*180cm |
|
Grinding wheel inner diameter |
40mm |
Machine weight |
1800KGS |
|
grinding wheel outer diameter |
Φ100-Φ200mm |
Cooling method |
Water cooling |
Optional Accessories
The Manual PCD Inserts Grinding Machine can also be equipped with other accessories, such as a CBN negative chamfering machine, a round bar grinding unit, and a negative chamfering fixture. The accompanying 60-liter forced bag filter features a special filtration design, providing extremely high filtration accuracy. With a suitable sealing ring arrangement, it can achieve 100% leak-free operation, fully meeting various processing requirements.
