High Speed Arc Chamfering Machine

TXMC as a professional High Speed Arc Chamfering Machine supplier in China, we firmly believe that a stable and well-designed mechanical structure is the cornerstone of superior performance.Backed by a 7,000m cubic meters production base and over 50 core patents, our CE-certified products are exported to 128+ countries and regions worldwide.
Model: TX-R300D/R300

Send Inquiry

Product Description

The TXMC series High Speed Arc Chamfering Machines, latest selling models, are specifically designed for workpieces that have not undergone heat treatment and are widely used in chamfering processes in various mold manufacturing and mechanical parts processing.

The standard TX-R300 model can efficiently complete the grinding of straight edge chamfers and comes standard with a common motor to meet routine processing needs.

The upgraded TX-R300D chamfering machine brings functional upgrades, handling both rounded (R) and chamfered (C) corners with ease.It provides variable real-time motor speed modification based on the properties of the processed material. The R300D's high-performance brushless motor significantly improves operational stability and output power. It has a 3 to 5 times longer service life than normal motors, which significantly improves the equipment's longevity and overall performance.

Products Parameter

Model	TX-R300D	TX-R300
Chamfering height	R1-R4/C3	0-3(6)mm
Voltage	220V	380V
Power	550W	550W
Speed	3000-6000RPM	2800RPM
Dimension	43×34×25cm	54×40×31cm
Weight	30KGS	39KGS

Learn more

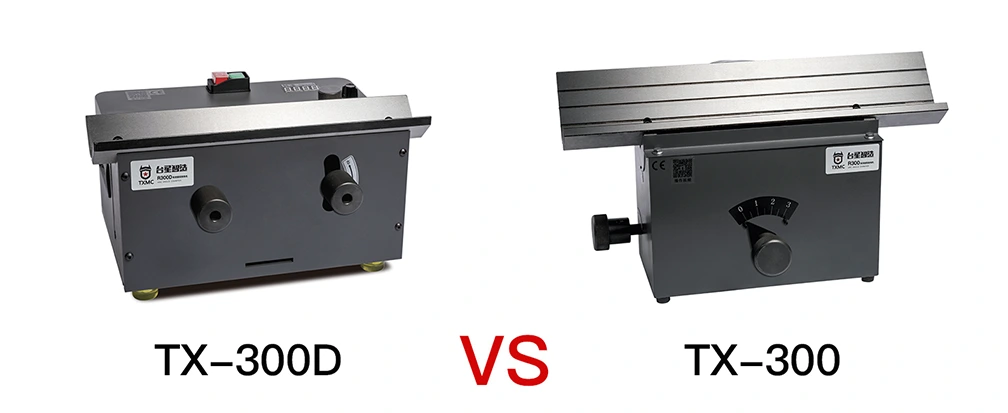

Differences between TX-R300D and R300 High Speed Arc Chamfering Machines:

TX-R300 (Standard Model): Excels at delivering precise, clean right-angle chamfers. It is a reliable and robust solution for consistent results in routine applications.

TX-R300D (Advanced Model): An upgraded version featuring a high-performance brushless motor (3-5 times more powerful than standard motors).This provides greater stability and adaptive speed control, which automatically optimizes for diverse materials. It handles complicated profiles, including rounded (R) and beveled (C) corners, more efficiently.
