High Speed Straight Chamfering Machine

As a manufacturer deeply rooted in the High Speed Straight Chamfering Machine field, TXMC have independently developed over sixty models of tool regrinding equipment, including chamfering machines, peripheral grinders, and universal tool grinders. Moving forward, TXMC will remain focused on customer grinding needs, innovating to become your most trusted partner.
Model: TX-R700/R700D/R700B

Send Inquiry

Product Description

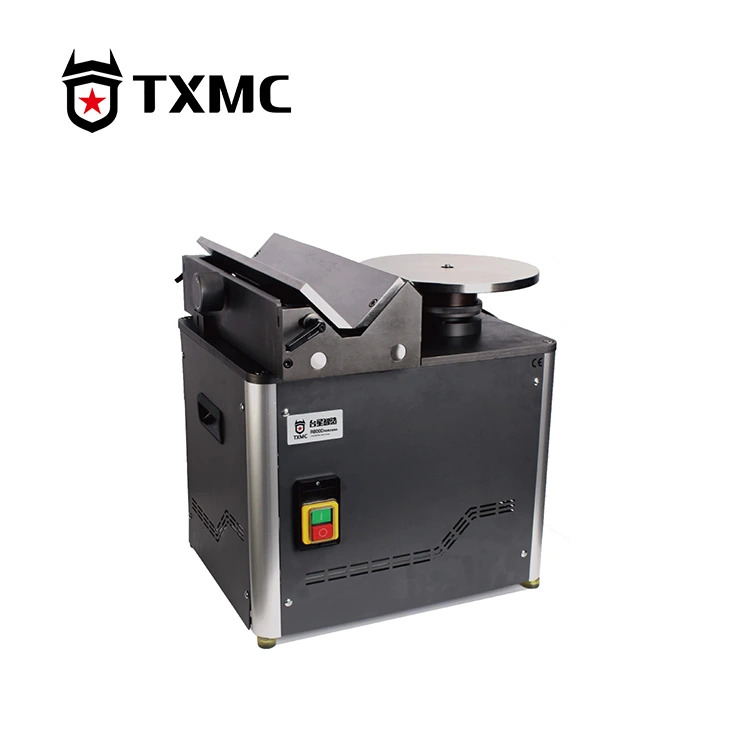

TXMC's TX-R700/R700D/R700B series High Speed Straight Chamfering Machines specialize in high-speed chamfering and deburring of curved and straight edges of metal parts, widely used in machining, mold manufacturing, and other industries for chamfering operations on pre-processed parts.

Products Parameter

Model	TX-R700	TX-R700D	TX-R700B
Chamferingrange	0-2.5mm	0-3mm	0-3mm
Chamfering angle	45°	45°	15°-45°
Voltage	380V	380V	380V
Power	550W	550W	550W
Speed	12000RPM	8500RPM	8500RPM
Dimension	44×39×49cm	46×41×56cm	46×41×56cm
Weight	43KGS	43KGS	49KGS

Learn more

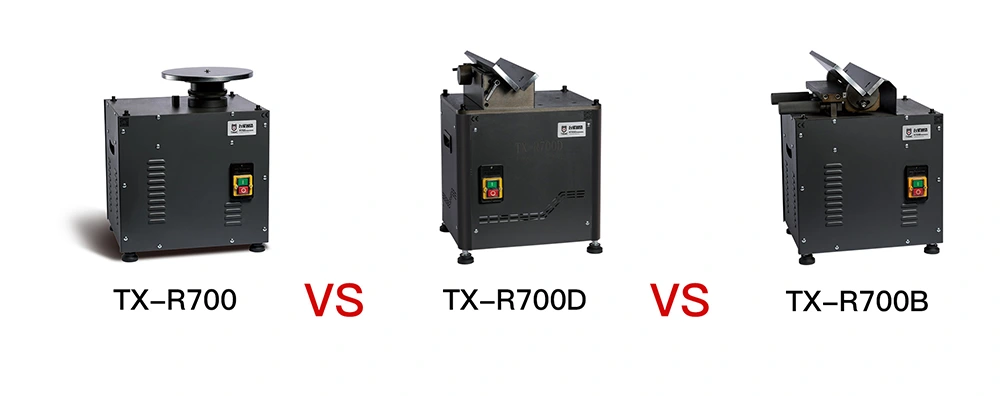

Differences between the TX-R700/R700D/R700B series High Speed Straight Chamfering Machines:

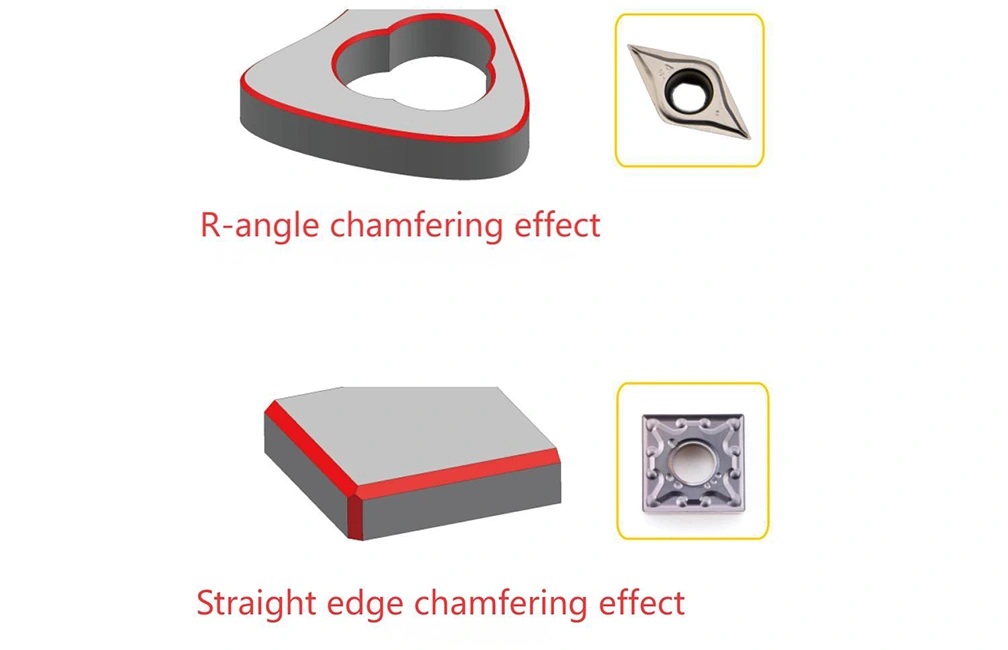

The TX-R700 is a curved edge chamfering machine, specifically designed for high-speed chamfering and deburring of curved edges on metal parts.

The TX-R700D is a straight edge chamfering machine, specifically designed for efficient chamfering and deburring of straight edges on metal parts.

The TX-R700B, an upgraded version of the TX-R700D, not only retains the straight edge chamfering function but also adds a straight edge chamfering angle adjustment function to adapt to more application scenarios.
