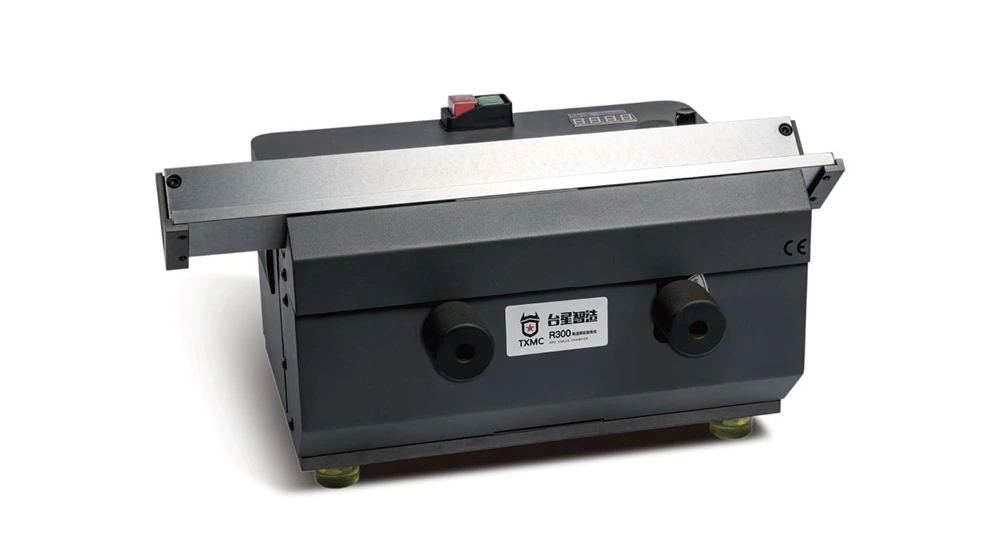

Slide Rail Chamfering Machine

In the field of Slide Rail Chamfering Machines, TXMC factory has always adhered to the concept of innovation, placing customer needs at the core of product research and development. We focus on customer pain points to deliver truly market-driven solutions. To date, we have produced over 60 models of grinding equipment, including Slide Rail Chamfering Machines,Fully Automatic Cutters Grinding Machine.
Model: TX-R300H

Send Inquiry

Product Description

TXMC’s durable Slide Rail Chamfering Machine is built for chamfering untreated workpieces. It’s widely used in making various molds and mechanical parts.

The R300H is an upgraded R300D model. It comes standard with a high-efficiency brushless motor, delivering much better stability and power—outperforming standard motors by 3 to 5 times. It keeps all the R300D’s functions, handling both radius (R) and chamfer (C) angles. Motor speed is adjustable to match the workpiece material.

Additionally, the R300H adds a dedicated sliding panel. It prevents direct friction between the workpiece and the machine table, avoiding scratches and preserving the workpiece’s surface quality.

Products Parameter

Model	TX-R300H
Chamfering height	R1-R4/C3
Voltage	220V
Power	550W
Speed	3000-6000RPM
Dimension	52×40×25cm
Weight	33KGS

Slide Rail Chamfering Machine

Learn more

What materials can the R300H and R300 Slide Rail Chamfering Machine be used to regrind?

The R300H has a wide range of regrinding capabilities. In addition to covering all steel materials that the R300 can handle, it can also process aluminum, copper, and other materials such as handicrafts.
