Small Drill Bit Sharpener

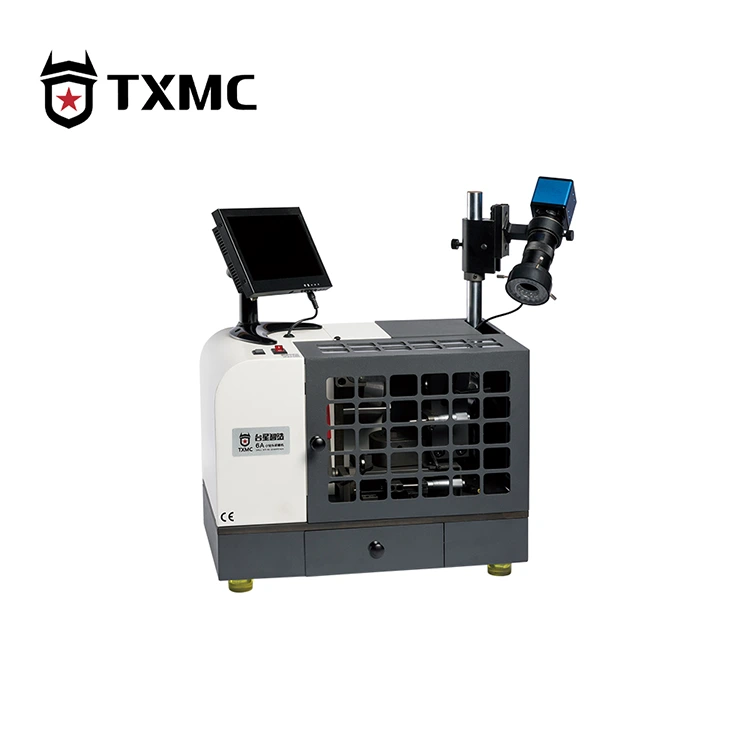

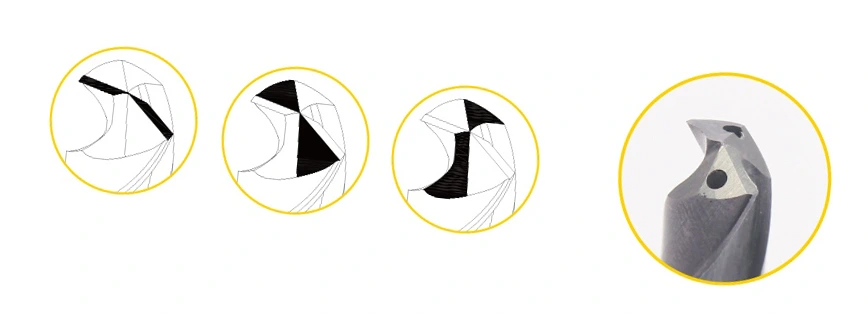

The TX-6A Small Drill Bit Sharpener, a latest selling model from the TXMC brand, features a built-in camera with 60-200x magnification for precise positioning of the drill bit sharpening angle and post-sharpening observation. It can sharpen self-centering drills with flat back angles and various chisel edge configurations. A stroke stop control during grinding ,which can ensure high drill bit accuracy, good symmetry, strong penetration, and long drill bit life.

Products Parameter

Standard Accessories

Standard Equipment：

①　Grinding Wheel :CBN (for HSS)×1

②　Standard Collet:11PCS (Φ1,Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ4.5,Φ5,Φ5.5,Φ6)

Option Equipment：

Grinding Wheel :SDC (for Carbide)

Learn More

1.What are the differences between the TX-S20 and TX-6A, both Small Drill Bit Sharpener?

The TX-S20 grinds drill bits from 2 to 6 mm, while the TX-6A grinds drill bits from 0.6 to 6 mm. Equipped with an industrial camera, it can easily grind drill bits as small as 0.6 mm.

2.What is the grinding precision of this machine?

The grinding precision of the TX-6A is within 5 microns. The grinding process is controlled by forming stop blocks, which better ensures the accuracy of the drill bit.

3.How to clean and maintain the machine?

After use, use a brush or air gun to remove any residual metal dust from the machine and check if the grinding wheel is intact.
