HSS Drill Bit Sharpener
One of the top producers and suppliers of HSS Drill Bit Sharpener in China is TXMC. With more than 20 years of concentrated expertise in the grinding sector, we have built a solid name in Europe and the Middle East because of low prices and high quality. We are eager to provide you with even greater service.
Model: TX-Z13/Z20/Z26/Z32
Send Inquiry
Product Description
Procure TXMC TX-Z13/Z20/Z26/Z32 quality HSS Drill Bit Sharpener — popular for their portability, these machines feature high-quality diamond grinding wheels from Taiwan, ensuring exceptional precision and long-lasting durability.
Product Specification
|
Model |
TX-Z13 |
TX-Z20 |
TX-Z26 |
TX-Z32 |
|
Grinding range |
Φ3-Φ13 |
Φ3-Φ20 |
Φ12-Φ26（Φ32） |
Φ3-Φ32 |
|
Point angle |
90°-140° |
95°-140° |
95°-140° |
90°-140°/95°-140° |
|
Voltage |
220V |
220V |
220V |
220V |
|
Power |
120W |
160W |
250W |
250W |
|
Speed |
4400RPM |
4400RPM |
4400RPM |
4400RPM |
|
Dimension |
36×21×19cm |
43×22×21cm |
43×22×21cm |
42×27×34cm |
|
Weight |
9KGS |
12KGS |
22KGS |
29KGS |
Product Features

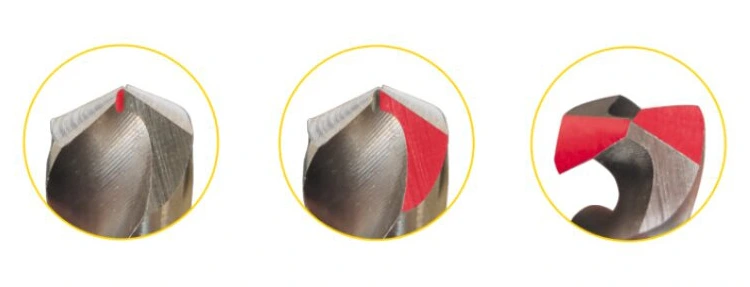

Precise regrinding angles: Professionally regrinds the tip angle, front cutting edge, and chip flutes of drill bits.

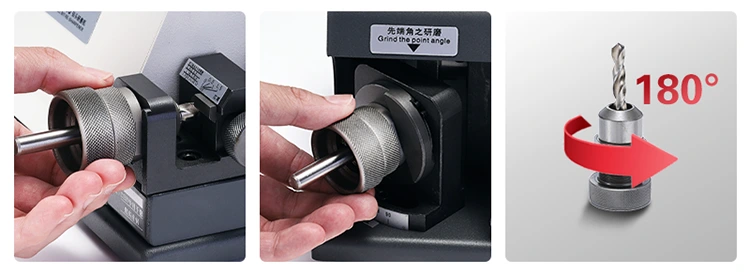

Easy and convenient operation: The HSS Drill Bit Sharpener is equipped with a dedicated tool setting holder, effectively avoiding problems caused by inaccurate manual angle positioning and lowering the operational threshold.
Durable and reliable: Utilizing diamond grinding wheels and a high-strength machine body structure, the core motor offers a one-year warranty, resulting in a longer service life.
Significantly reduced costs: By repeatedly regrinding old drill bits, this HSS Drill Bit Sharpener expenditures on purchasing new drill bits are significantly reduced, achieving long-term economic benefits.
Product Accessories
|
Model |
TX-Z13 |
TX-Z20 |
TX-Z26 |
TX-Z32 |
|

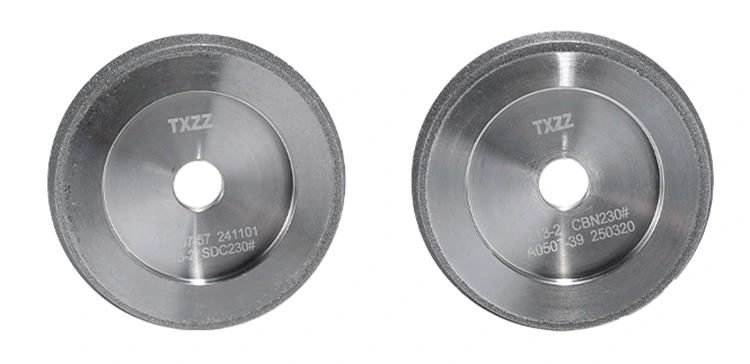

Grinding Wheel |
CBN (for HSS)×1 |
CBN (for HSS)×1 |
CBN (for HSS)×1 |
CBN (for HSS)×2 |
|
Standard Collet |

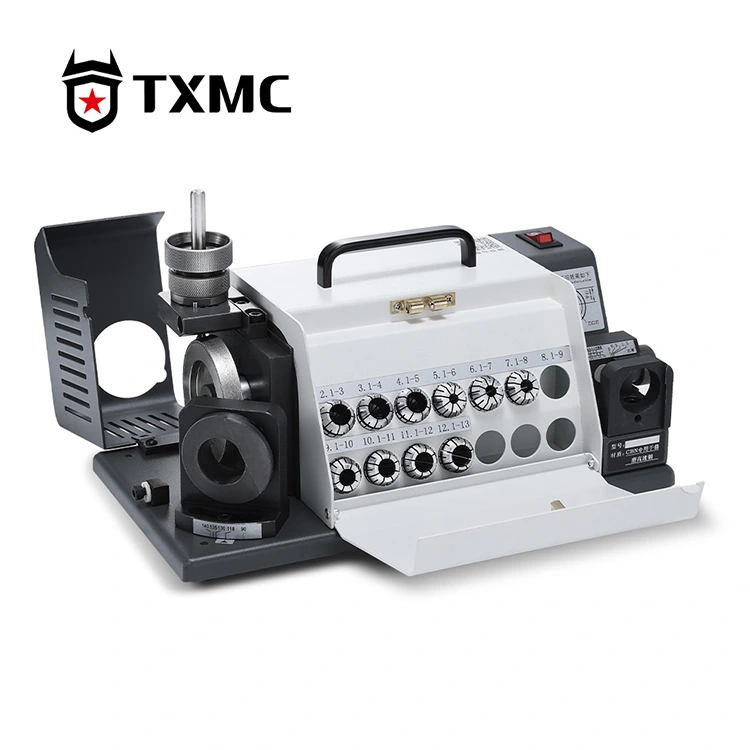

11 PCS(Φ3,Φ4,Φ5,Φ6,Φ7, Φ8,Φ9,Φ10,Φ11,Φ12,Φ13) |
18 PCS(Φ3,Φ4,Φ5,Φ6,Φ7, Φ8,Φ9,Φ10,Φ11,Φ12,Φ13, Φ14,Φ15,Φ16,Φ17,Φ18,Φ19,Φ20) |
15 PCS(Φ12,Φ13,Φ14,Φ15, Φ16,Φ17,Φ18,Φ19,Φ20,Φ21, Φ22,Φ23,Φ24,Φ25,Φ26) |
30 PCS(Φ3,Φ4,Φ5,Φ6,Φ7, Φ8,Φ9,Φ10,Φ11,Φ12,Φ13, Φ14,Φ15,Φ16,Φ17,Φ18,Φ19, Φ20,Φ21,Φ22,Φ23,Φ24,Φ25, Φ26,Φ27,Φ28,Φ29,Φ30,Φ31,Φ32) |
|
Collet Chuck |
ER20 |
ER20,ER25 |
ER40 |
ER20,ER40 |
|
Option Accessories |
Grinding wheel :SDC (for Carbide) |
|||
