TXMC is a professional equipment manufacturer specializing in Stainless Steel Drill Bit Sharpener, integrating R&D and production. For many years, we have earned the trust of our customers with superior quality and reliable service; this is TXMC's commitment to every partner.
Model: TX-Z13E

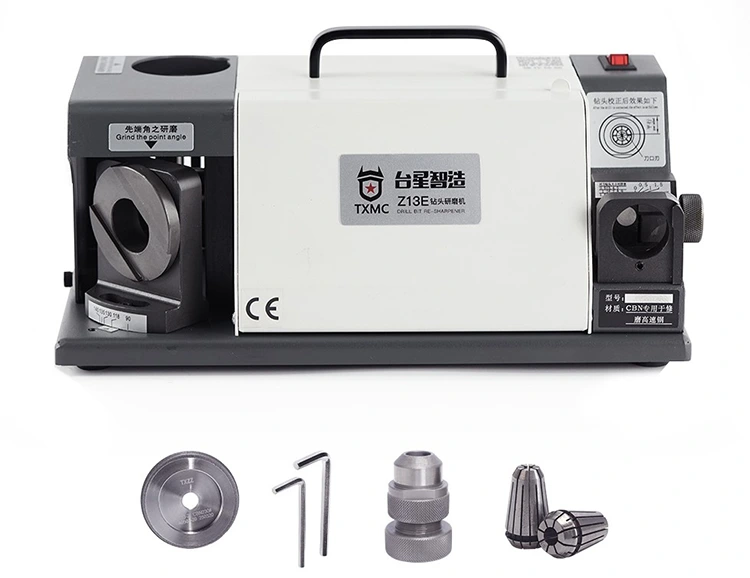

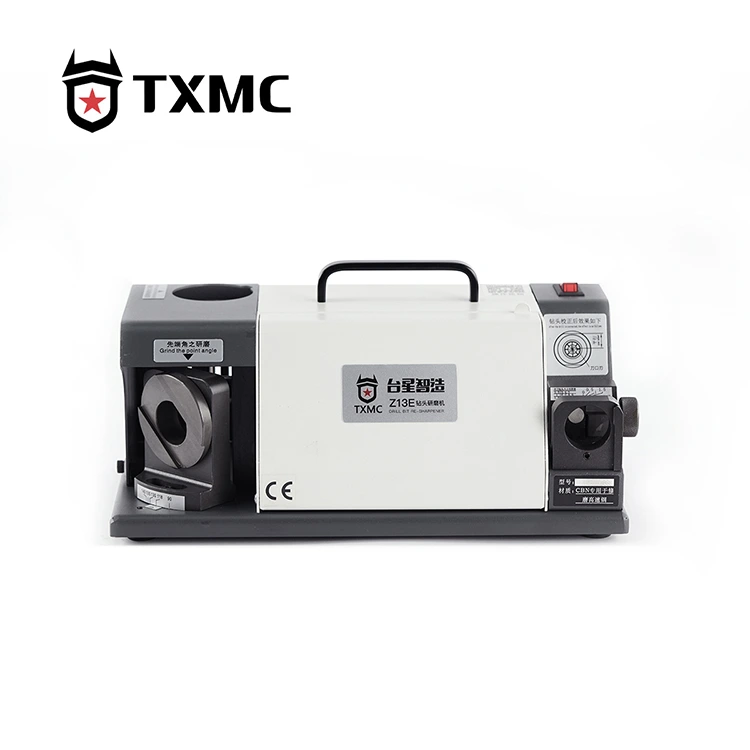

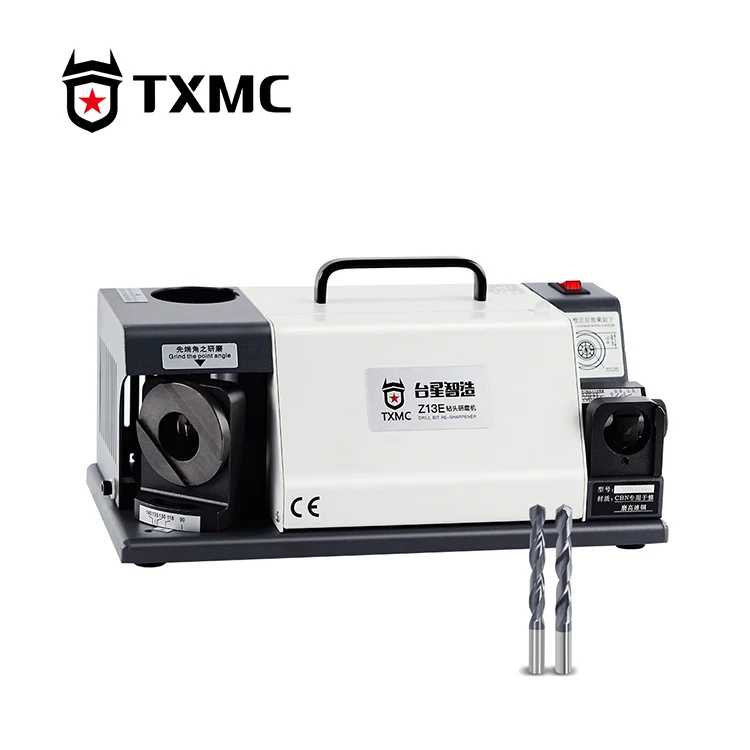

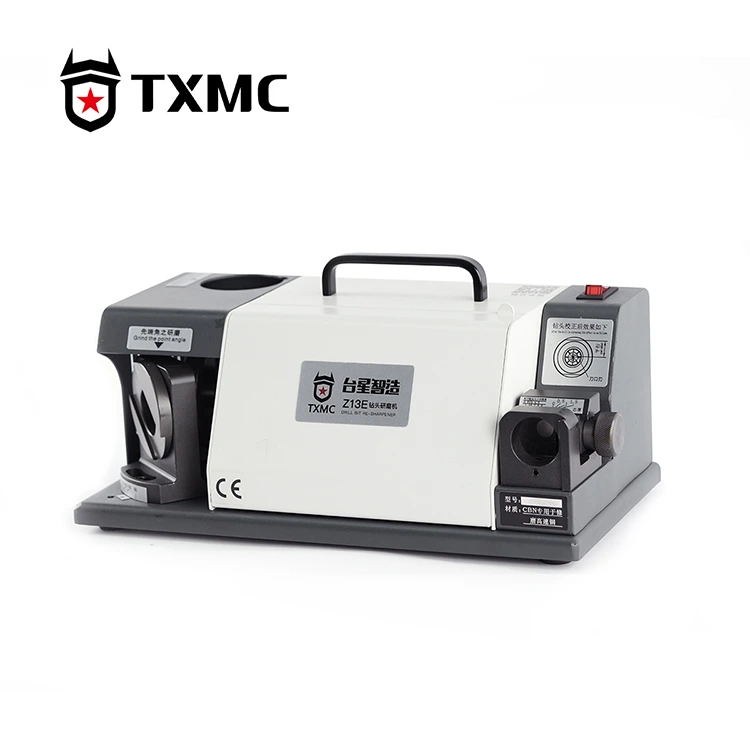

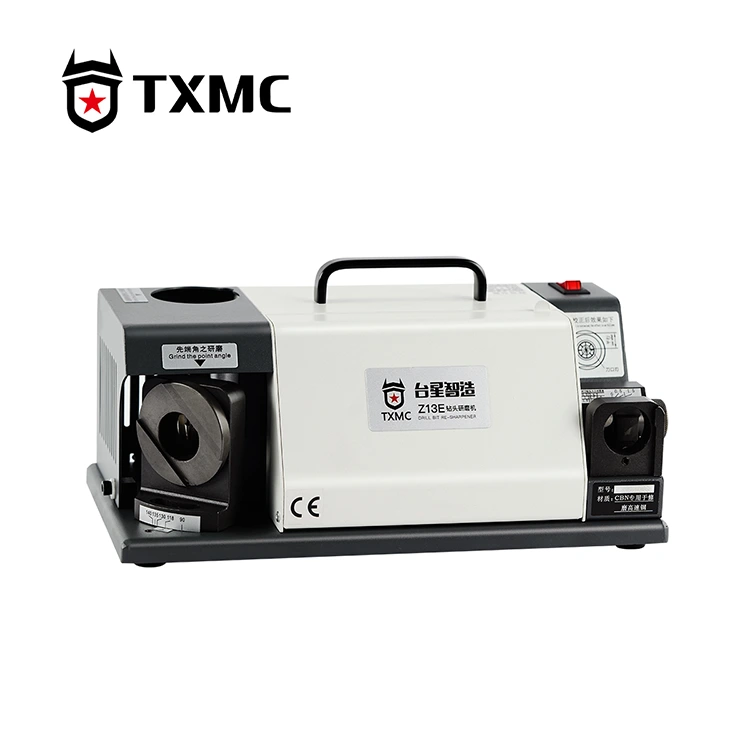

The TXMC TX-Z13E is a customized Stainless Steel Drill Bit Sharpener from TXMC, specifically built for grinding stainless steel drill bits, representing a performance upgrade from the basic TX-Z13 model. It is meticulously designed to enhance the precision and efficiency of stainless steel drill bits.
|
Model |
TX-Z13E |
|
Grinding range |
Φ3-Φ13 |
|
Point angle |
90°-140° |
|
Voltage |
220V |
|
Power |
120W |
|
Speed |
4400RPM |
|
Dimension |
36×21×19cm |
|
Weight |
9KGS |
Applications: The Stainless Steel Drill Bit Sharpener is excellent for regularly sharpening and reconditioning drill bits used in the automobile repair, construction and decoration, machining, and mold manufacturing industries.
Compatible Drill Bit Types: HSS drill bits, stainless steel drill bits, and twist drill bits, etc.
After-sales Support: One-year warranty on the motor, video operation guidance, online engineer Q&A to address user concerns regarding subsequent use.
Standard Equipment:
① Grinding Wheel :CBN (for HSS)×1
② Standard Collet:11 PCS(Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13)
③ Collet Chuck:ER20 ×1
Option Equipment:
Grinding Wheel :SDC (for Carbide)
