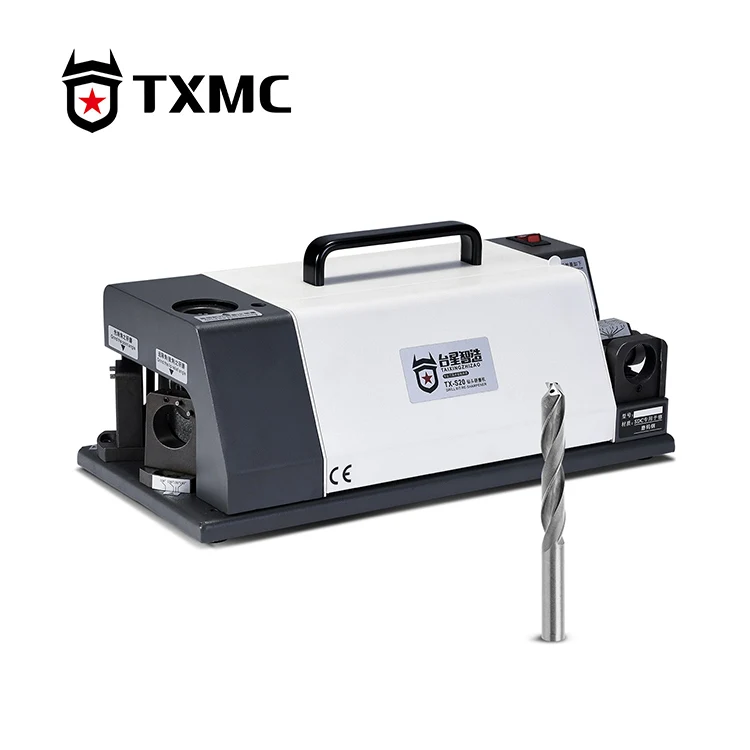

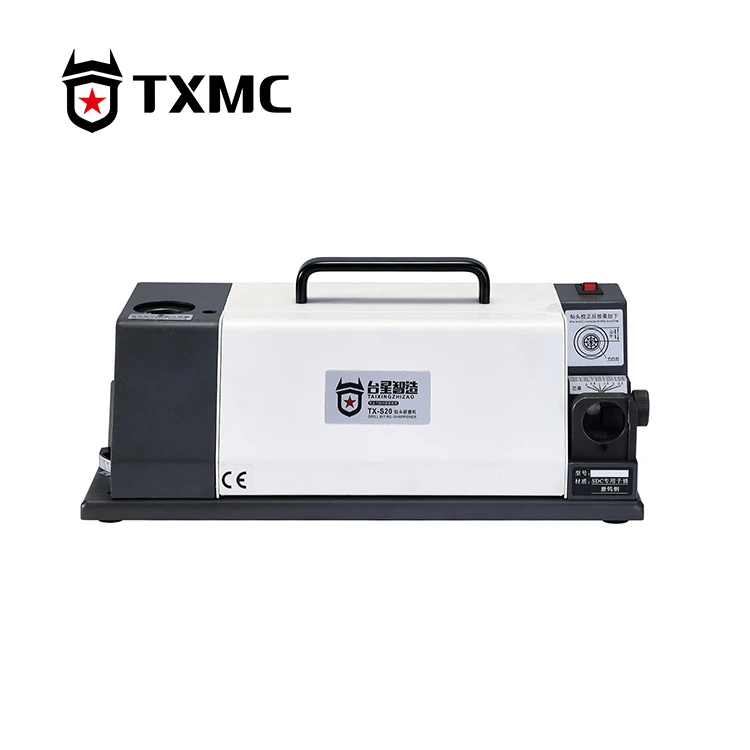

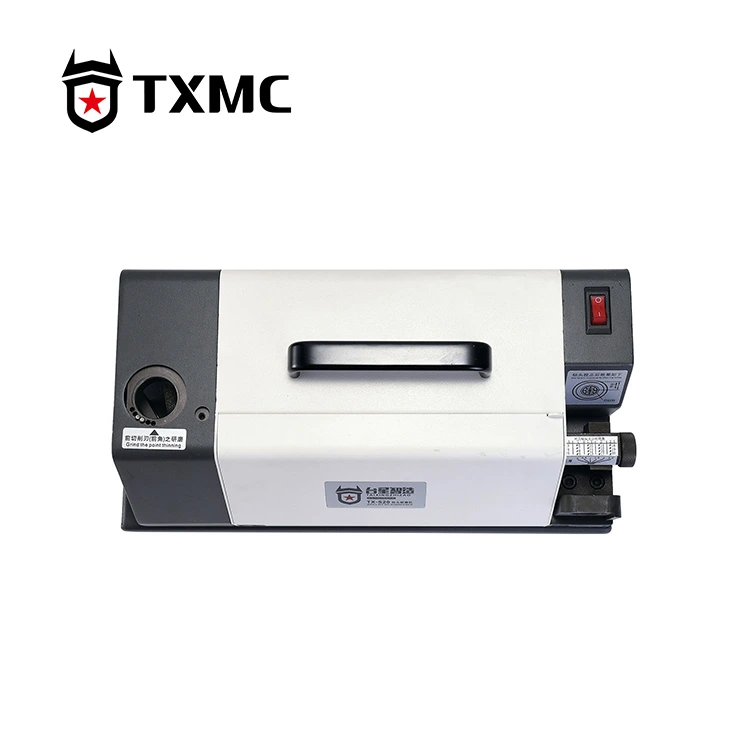

Three Facet Drill Bit Sharpener

TXMC as a Chinese-made Three Facet Drill Bit Sharpener supplier, TXMC has focused on market demand for many years, creating a variety of portable drill bit sharpeners. It provides stable, reliable, and cost-effective drill bit grinding solutions for industrial production enterprises, processing workshops, and maintenance institutions around the world, helping customers improve production efficiency and reduce drill bit costs with professional equipment.
Model: TX-S20

Send Inquiry

Product Description

TXMC brand TX-S20 Three Facet Drill Bit Sharpener excels at professional-grade grinding, making it an excellent choice for both industrial machining and manual workshops.Made from high-hardness materials through precision manufacturing, it is equipped with Taiwan-produced diamond grinding wheels that offer exceptional wear resistance and grinding accuracy.

Three Facet Drill Bit Sharpener

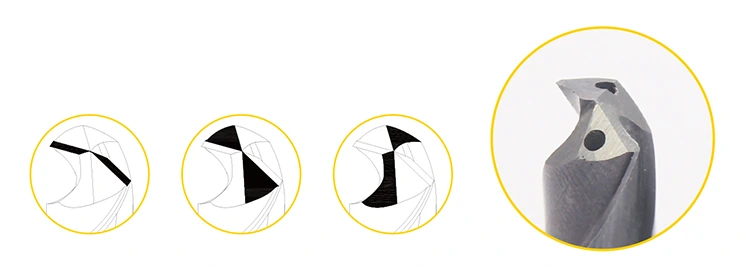

The TX-S20 Three Facet Drill Bit Sharpener excels at regrinding, enabling precise shaping of a drill bit’s three key angles（apex angle, positive rake angle, and rear angle）.These angles can be flexibly adjusted based on the workpiece material,perfectly adapting to diverse cutting needs.With clear angle markings on the machine,there’s no need for complicated calibration—even beginners can quickly get the hang of it and easily finish standardized grinding work.

Compatible drill bits:

Three Facet Drill Bits, Powder Metallurgy Drill Bit s, Carbide Drill Bits, etc.

Three Facet Drill Bit Sharpener

Products Parameter

Model	TX-S20	TX-S13
Grinding range	Φ3-Φ20	Φ3-Φ13
Point angle	118°-140°	118°-140°
Voltage	220V	220V
Power	160W	160W
Speed	4400RPM	4400RPM
Dimension	43×22×21cm
Weight	12KGS

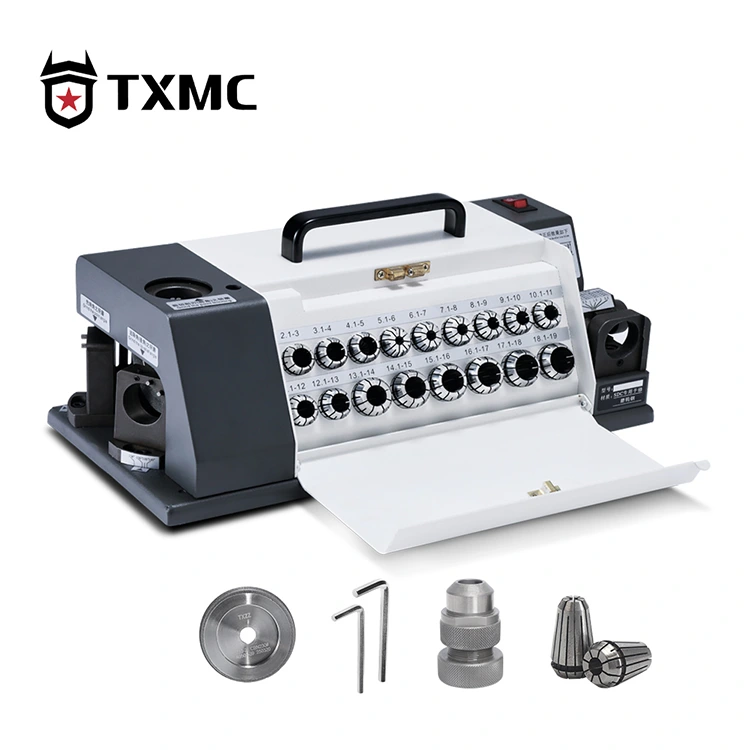

Standard Accessories

Model	TX-S20	TX-S13

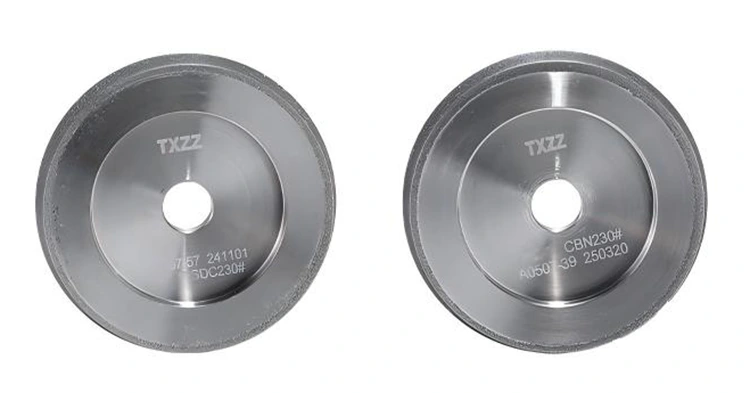

Grinding Wheel	SDC (for Carbide)×1
Standard Collet	18 PCS(Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16,Φ17,Φ18,Φ19,Φ20)	11 PCS(Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13)
Collet Chuck	ER20,ER25	ER20
Option Accessories	Grinding wheel :CBN (for HSS)×1
