Three Phase Motor Chamfering Machine

TXMC, a manufacturer deeply rooted in the Three Phase Motor Chamfering Machine field, is continuously expanding its reach. As one of the largest domestic enterprises specializing in the design, R&D, production, and sales of tool grinders, peripheral grinders, and chamfering machines, TXMC boasts over 20 years of industrial experience. Our market spans more than 128 countries and regions worldwide.
Model: TX-R800B/R800D

Send Inquiry

Product Description

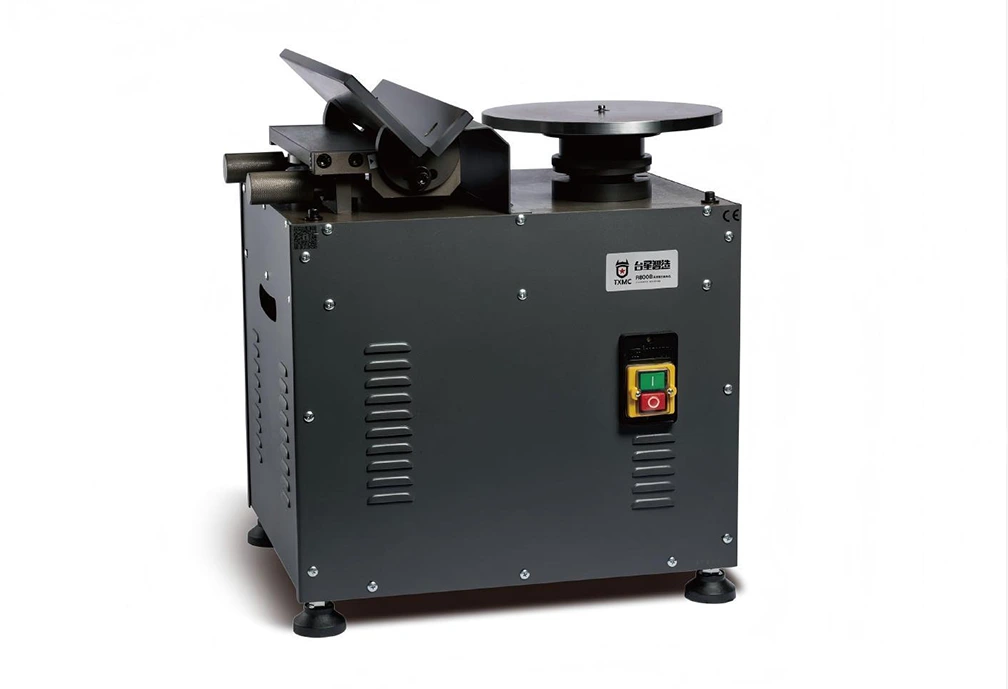

The TXMC upgraded TX-R800/R800D series Three Phase Motor Chamfering Machines are positioned as multi-functional composite grinding machines, capable of grinding both straight and curved chamfers.This type converts the motor to a unique three-phase motor, which results in smoother performance and better heat dissipation.It also makes use of authentic imported SKF high-speed bearings, which enable for precise and simple grinding of both curved and straight workpieces, such as exterior diameters, internal holes, and oblong holes.

Products Parameter

Model	TX-R800B	TX-R800D
Straight chamfering range	0-3mm	0-3mm
Curve chamfering range	0-2.5mm	0-2.5mm
Chamfering angle	15°-45°	45°
Voltage	380V	380V
Power	750W	750W
Speed	8500RPM	12000RPM
Dimension	52×44×60cm	52×46×53cm
Weight	68KGS	53KGS

Learn more

Features of TX-R800B and R800D Series Three Phase Motor Chamfering Machines:

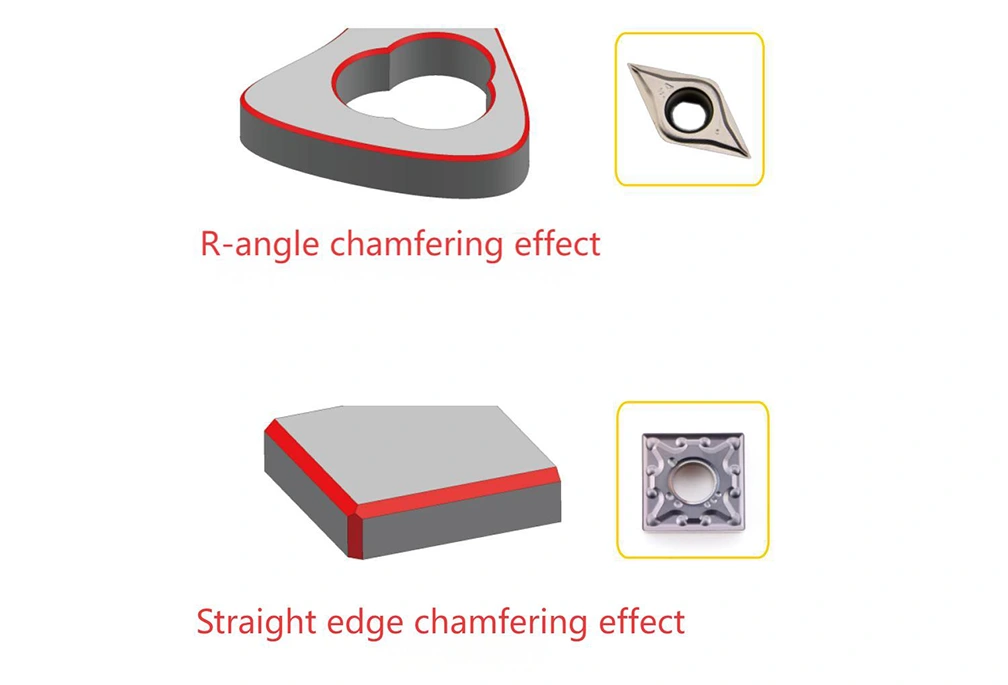

Multi-Function Composite Grinding: Capable of grinding both straight and curved chamfers on external diameters, internal holes, and oblong holes.

Core Performance Upgrades: Features a custom three-phase motor for smoother operation and superior heat dissipation, paired with original imported SKF high-speed bearings for precision and durability.

The TX-R800B, an enhanced version of the TX-R800D, incorporates the straight and curved chamfering capabilities of the TX-R800D model, and also allows for angle adjustment of the straight chamfering section.
